Flux One Pro

Flux One Pro

$12,595.00 CAD
$12,595.00 CAD
Sale Coming Soon
Frame Size

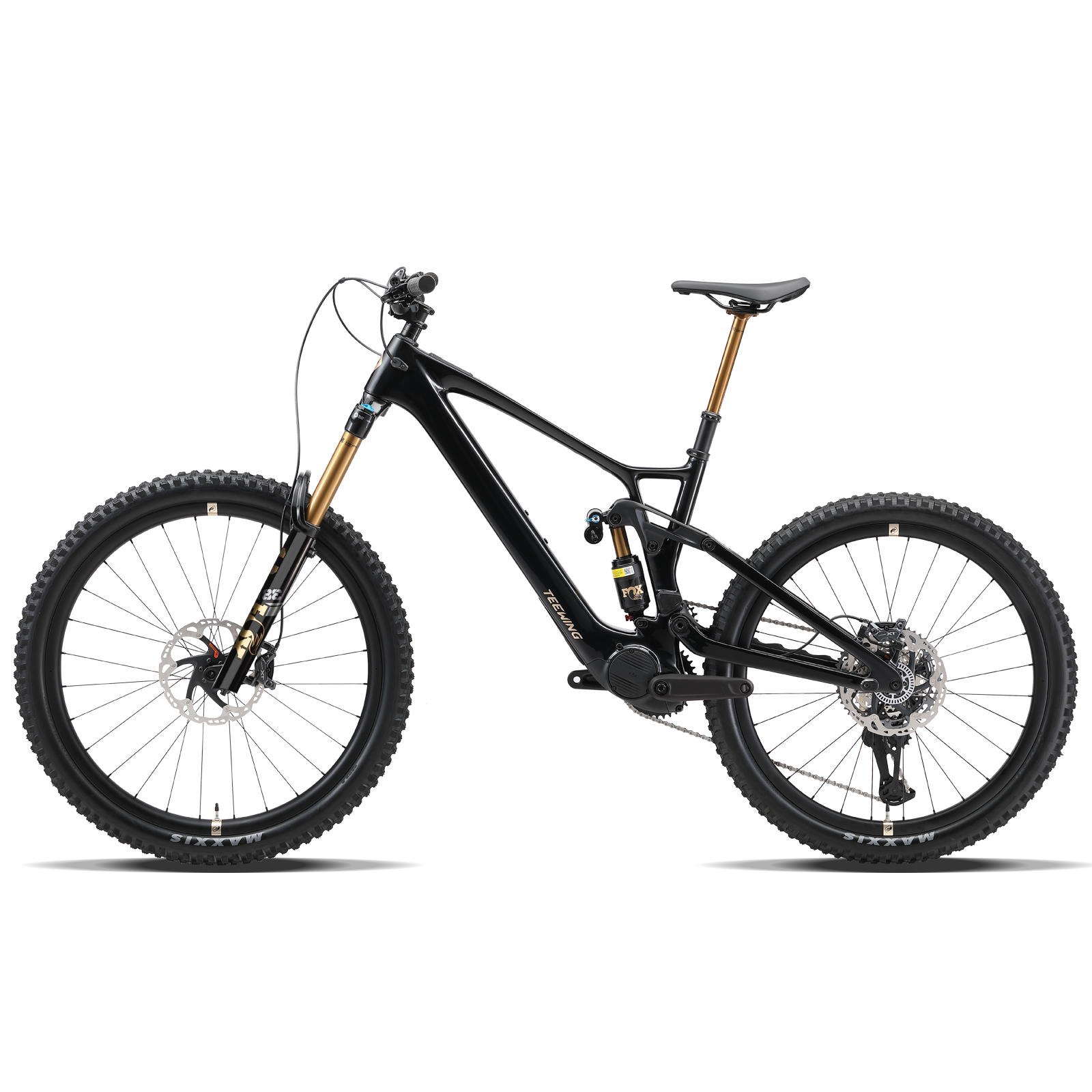

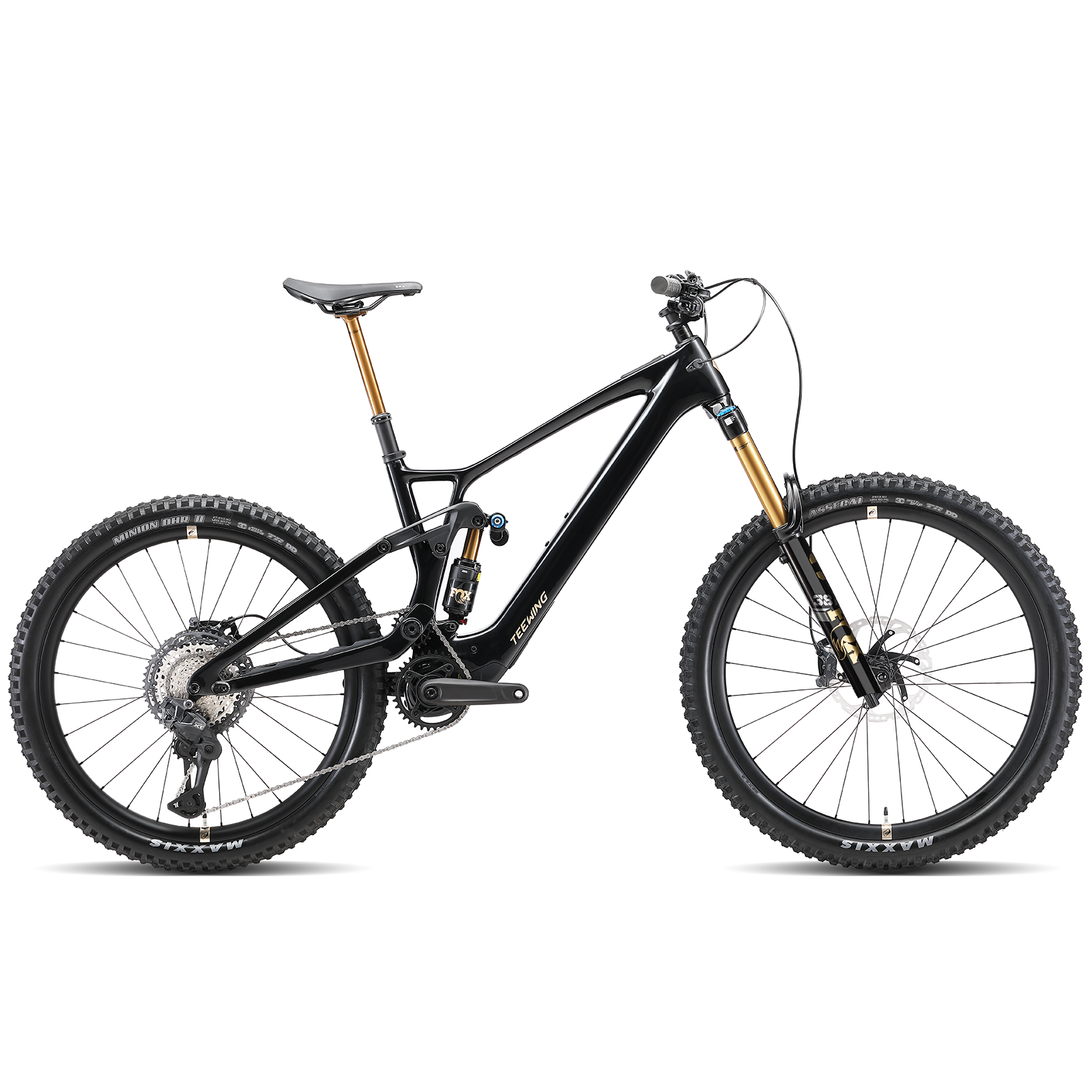

The all new Teewing Flux One Enduro Series marks a bold evolution in high performance eMTB design. Built around a full carbon frame and now powered by the latest Avinox M2S motor system, the Flux One delivers next generation power, refined control, and improved efficiency for the most demanding enduro terrain. The new M2S drive unit is quieter, stronger and smoother with enhanced responsiveness that gives riders the confidence to push harder both uphill and down.
A 2027 Fox Float Factory 38/X2 suspension package anchors the bike with a composed, race‑ready feel, delivering 180 mm of front travel and 170/178  mm of rear travel through a high‑pivot suspension platform designed to stay calm under heavy hits and high speeds. Combined with a mullet wheel setup and long‑travel geometry tuned for aggressive riding, the Flux One blends downhill dominance with relentless climbing efficiency. From wide‑open alpine descents to steep, technical, power‑hungry climbs, it delivers a planted, controlled, and unmistakably Teewing ride—raising the bar for what’s possible in an enduro e‑mountain bike.

Contact Us for Pre-Orders
View full details

Overview

Features

Specs

Sizing

Why Teewing

Avinox M2S Motor System – delivers next generation power, refined control, and improved efficiency to conquer the most demanding terrain. The M2S drive unit is quieter, stronger and smoother with enhanced responsiveness that gives riders the confidence to push harder both uphill and down.

Carbon Frame – enhanced stiffness but still weighing only 2.37kg, the frame and its geometry provide nimble ride whether climbing or descending. Total bike weight is under 50lbs (22.7kg) with an 800Wh high-capacity battery!

Value – you get a cutting-edge drive system with proven brand-name components and a great design, all for a highly competitive price.

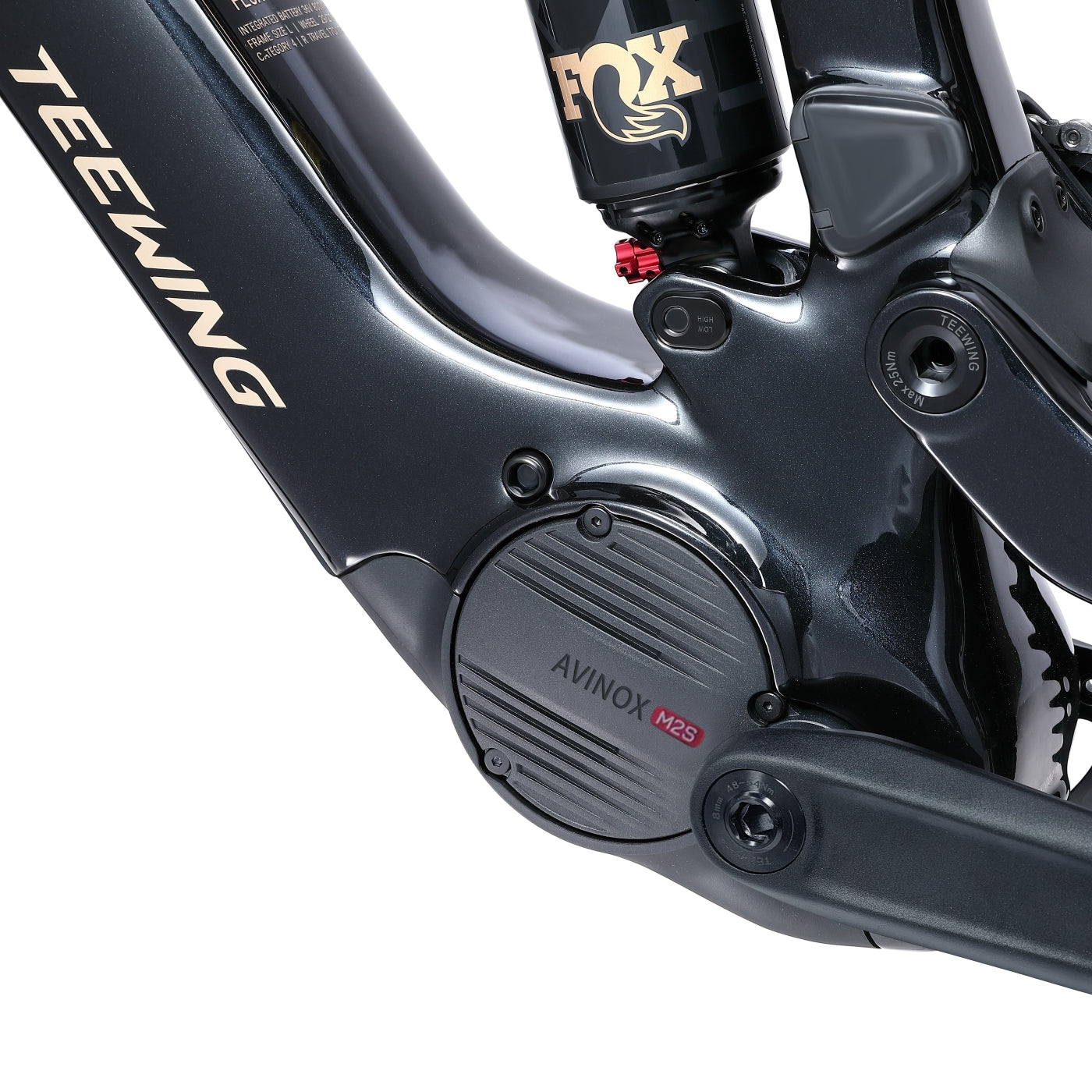

Avinox M2S Drive System

The Avinox M2S drive system represents a major leap in power, refinement, and ride feel. Weighing just 2.6 kg, the compact motor delivers a class leading 130 Nm of torque, with up to 150 Nm in Boost mode, making steep climbs and technical terrain feel effortless. Reduced pedal drag and minimized motor noise create a quieter, smoother, and more natural riding experience. Multiple assist modes—Auto, Eco, Trail, Turbo, and Boost—allow riders to adapt instantly to changing trail conditions. Paired with an integrated 800 Wh battery producing up to 1300 W peak output, the system offers strong, consistent performance and impressive range. An integrated Avinox top tube touch display, weather sealed magnetic charge port, and 155 mm crank arms complete a highly refined and confidence inspiring drive system.

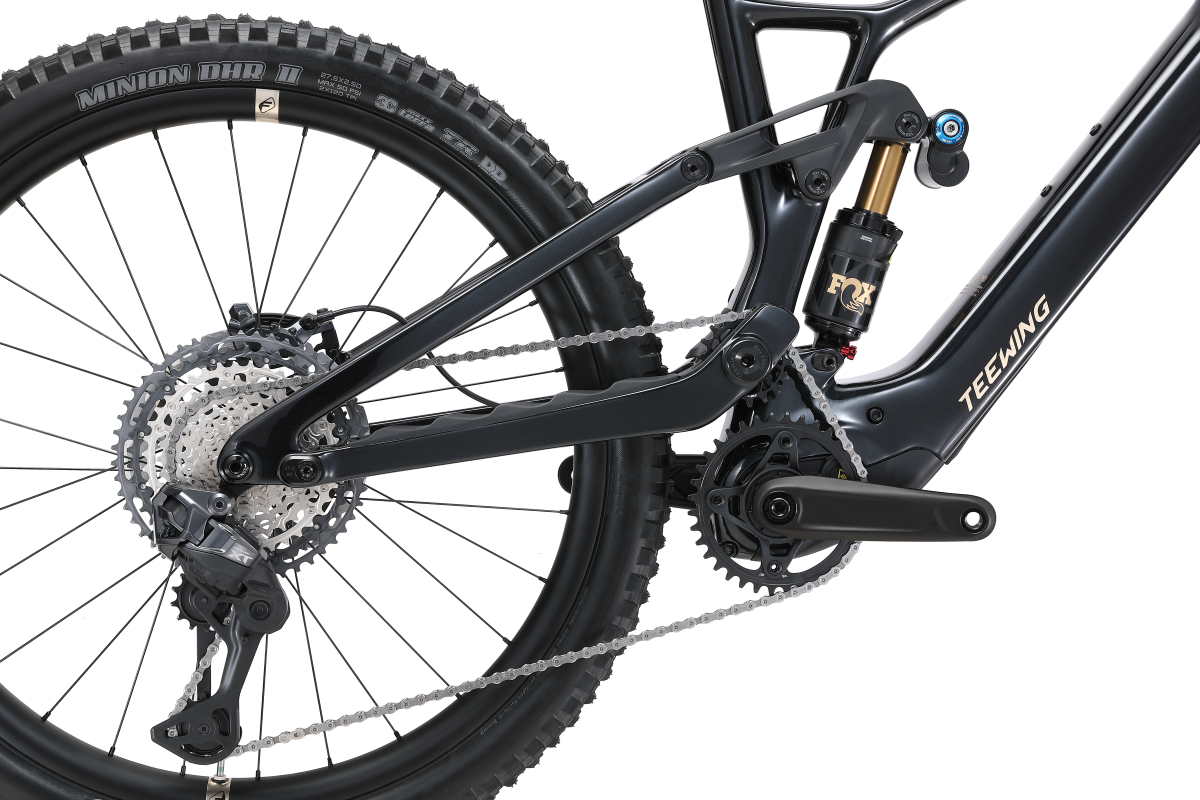

Master Every Descent with High-Pivot Control

The Teewing Flux One elevates enduro
performance with its advanced high-pivot suspension and precision idler pulley system, delivering a smoother, faster, and more controlled ride on the roughest terrain.The high pivot creates a rearward axle path that effortlessly absorbs big hits and maintains stability at speed, while the idler eliminates pedal kickback for efficient, consistent power delivery on climbs and descents. The result is exceptional traction, confident handling, and a uniquely planted feel that lets you push harder and ride more aggresively with total control.

Mullet Speed, Enduro Precision

The Teewing Flux One features a dynamic 29” front / 27.5” rear mullet setup, engineered to deliver the perfect balance of confidence and agility on demanding enduro terrain.The 29-inch front wheel rolls smoothly over obstacles, boosting stability and control at high speeds, while the smaller 27.5-inch rear wheel sharpens handling and provides quicker, more responsive cornering. Combined with the bike’s high-pivot suspension and idler system, this mullet configuration enhances traction, maneuverability, and overall ride flow—giving you the ideal mix of speed, precision, and playful control on every trail.

Adaptive Geometry, Optimized Controly

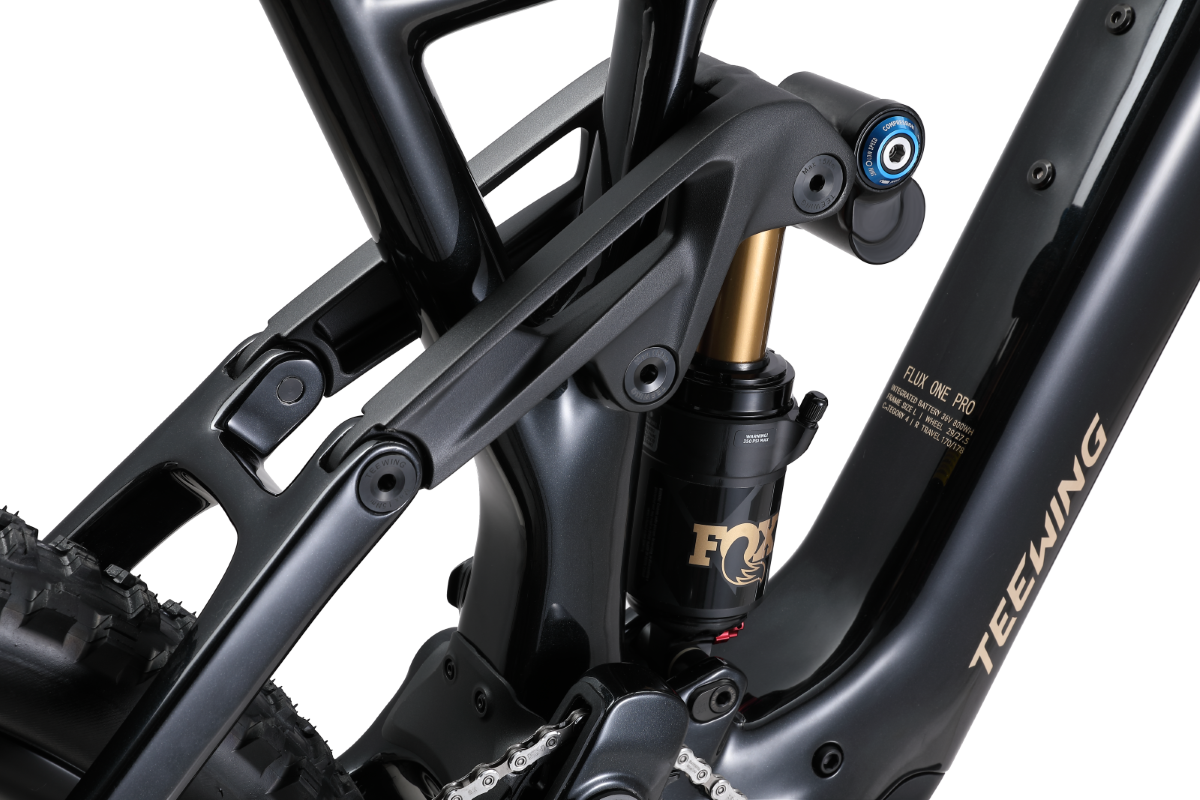

The Teewing Flux One is engineered with a lower-mounted rear shock that keeps the center of gravity planted for superior stability and balance on steep, technical descents. At the chain stay - seat stay junction, a reversible geometry chip allows riders to fine-tune the bike’s ride height and handling characteristics, instantly adjusting the frame’s center of gravity to match different trails or riding styles. Whether you prefer a lower, more aggressive setup for high-speed enduro lines or a slightly higher position for better pedal clearance and versatility, the Flux One gives you the freedom to customize your ride with precision.

Lightweight, High-Capacity Battery

The Teewing Turbo Force XT eMTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.

Hi-Amp Fast Charger

Utilizing GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.

Smart Touchscreen Control

A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.

Avinox App

The Avinox app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal
movement alerts, and other features.

After connecting to the Avinox app, users can customize the parameters shown on the Control Display according to their riding preferences and scenarios. They can also adjust riding parameters directly on the mobile app as needed.

Customizable Riding

The Avinox Drive System features four riding assist modes: Auto, Eco, Trail, and Turbo, and a special Boost mode can be quickly activated for more challenging terrain. In Boost mode, riders can enjoy a max 30 seconds of 150N·m drive torque and an instantaneous max output of 1300 W, allowing for easier handling of complex conditions.

In addition, parameters such as assist level and range, max torque, start assist, and continued assist can be adjusted for each assist mode (with the exception of Boost mode) via the Avinox app, and changes can be synced to the system instantly.

Auto

Designed for broad adaptability and long-range use, the innovative Auto mode utilizes multi-sensor fusion to automatically and continuously adjust assistance based on riding resistance.

Eco

Made to efficiently enhance long-range riding, Eco mode features gradual start-up acceleration and lower assistance, so riders can easily tackle flat terrain while conserving battery energy.

Trail

Aimed at mixed technical trails, Trail mode provides moderate start-up acceleration and stronger assistance, enabling riders to effectively overcome terrain challenges.

Turbo

Designed to assist with steep climbs, Turbo mode's aggressive start-up acceleration combined with maximum assistance, empowers riders to navigate challenging obstacles and terrain.

Boost

Boost mode offers up to 30 seconds of 150N·m drive torque and a max output of 1300 W, ideal for scenarios such as navigating challenging obstacles and complicated uphill climbs.

Model Flux One Pro (800Wh)
Frameset
Frame Teewing Flux One Carbon Frame - 170/178mm rear travel

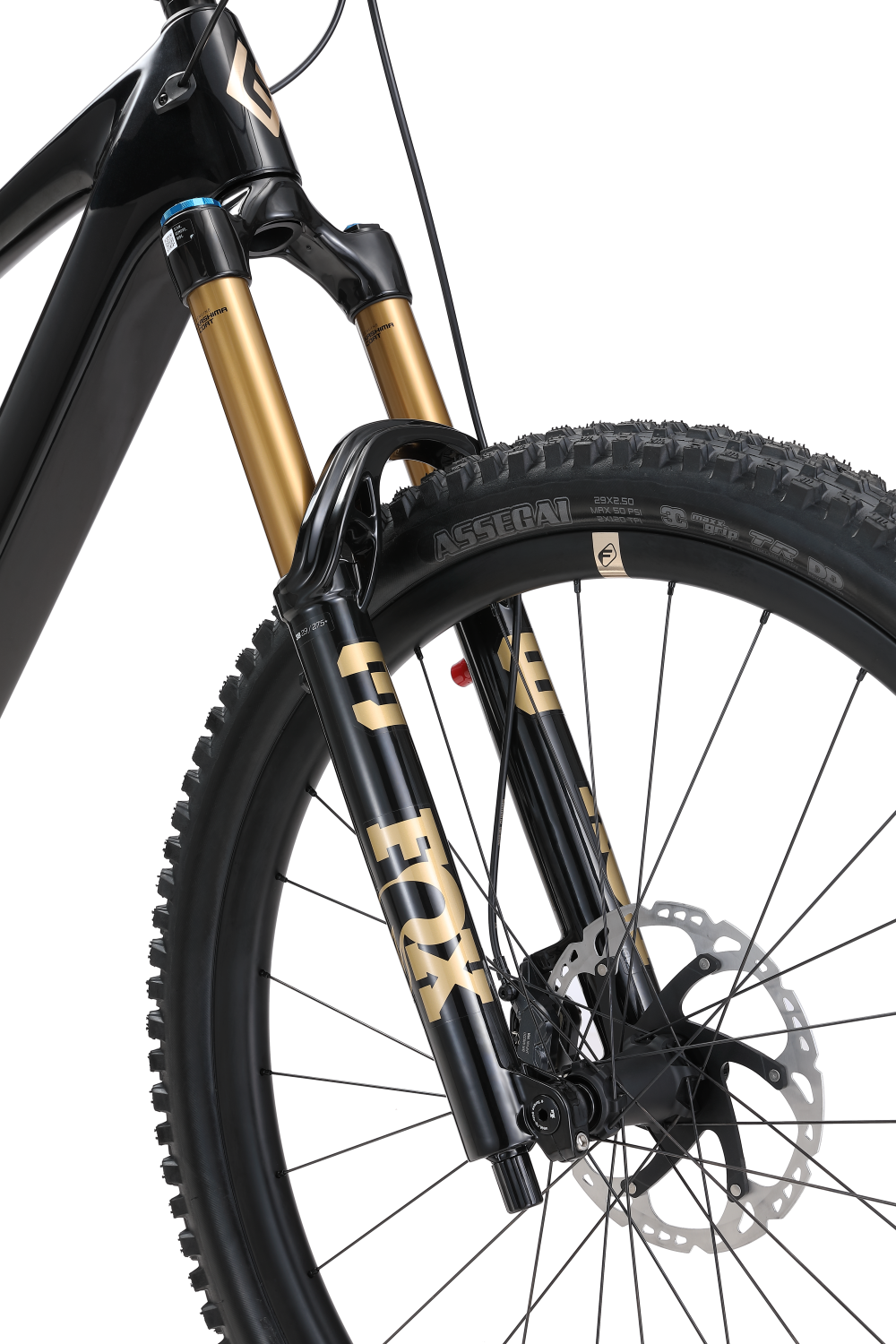

Fork 2027 Fox 38 Factory 180mm - 8, K, 29in, Grip X2, HSC, LSC, HSR, LSR, Shiny Blk, Neutral/Gloss Blk Logo, 15QRx110, 1.5 T, 58HT, 44mm Rake
Rear Shock Fox Float Factory X2 - 2 Pos Lever | HSC | LSC | HSR | LSR  | Metric Trunnion  205*65
E-Bike System
Motor Avinox M2S Drive Unit: 130 Nm (150 Nm Boost)
Interface Avinox Screen: 2-inch OLED Control Display. Wireless Controllers: Right and left sides.
Battery Avinox Integrated Battery: 800Wh
Charger Avinox Fast Charger: 12A/508W
Drivetrain
Shifter Shimano XT SW-M6250  DI2 12-SPEED

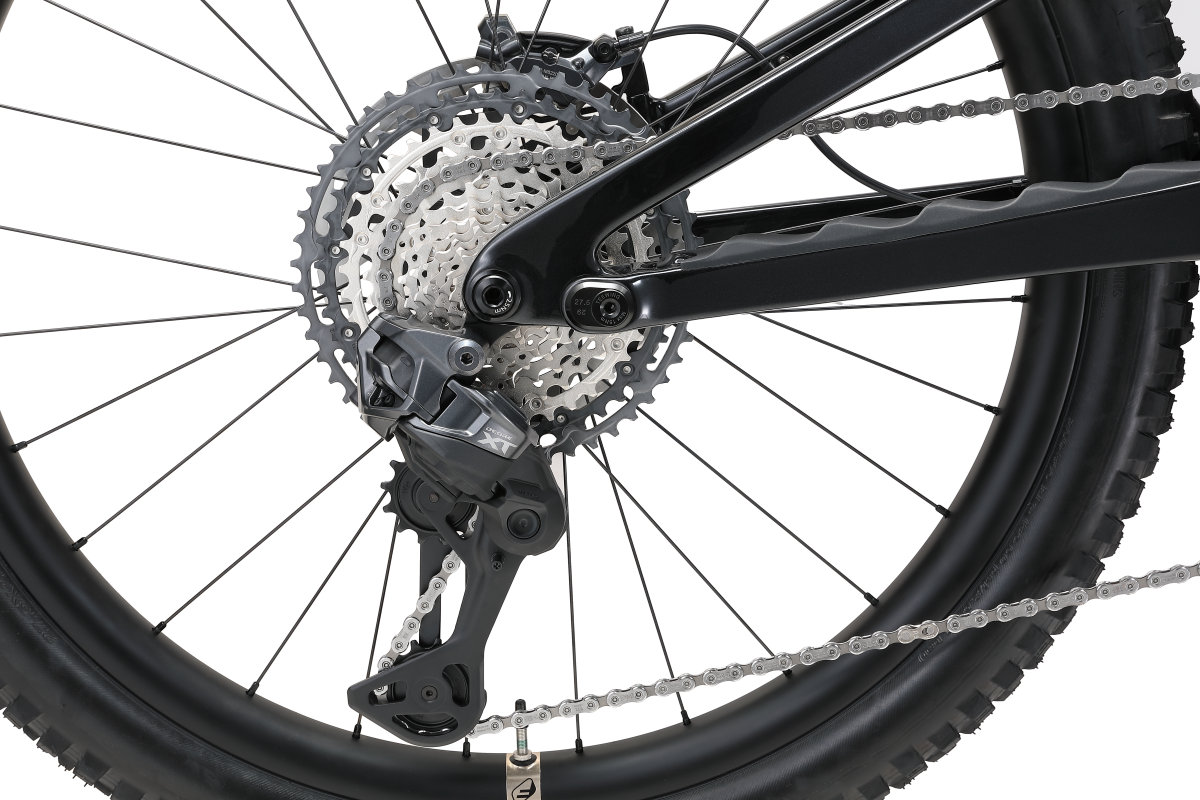

Rear Derailleur Shimano XT RD-M8250 SGS DI2 12-SPEED - electronic
Chainring Shimano SM-CRE70-12-B, 36T W/O CG, FOR CHAIN LINE 55MM, BLACK
Cassette Shimano XT M8200, 10-51T
Chain Shimano SLX CN-M7100, 124LINKS
Crankset Teewing SL Crank 155mm
Brakes

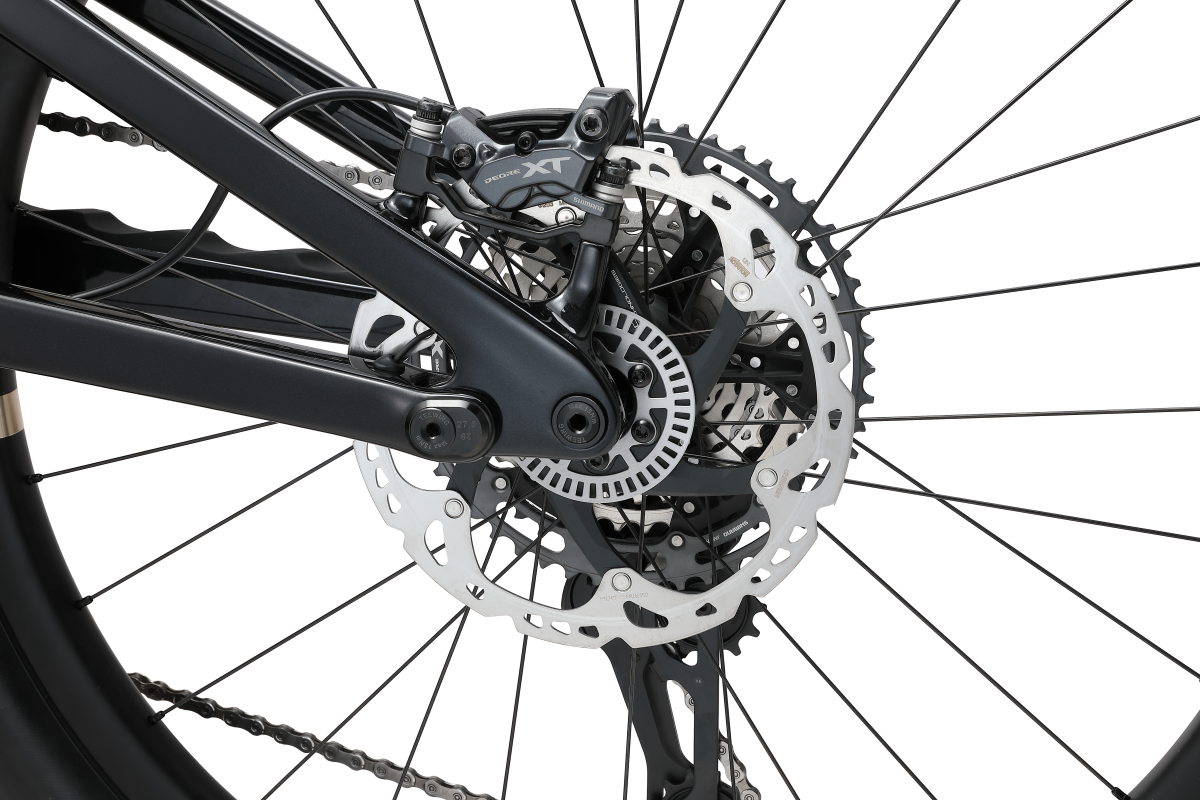

Caliper Shimano XT BR-M8220, hydraulic disc 4-Piston
Rotor Shimano-RT86-203mm
Wheels
Rim Formula - M7 pro Hybrid - Carbon Fiber, Front 29'', Rear 27.5”, 30mm inner width, 28 holes, vacuum compatible
Spokes SAPIM E-Light straight pull spokes
Front Hub Aluminum alloy, sealed bearing × 2, 15 × 110mm thru axle, 28 holes, straight pull, 6 nails
Rear Hub Aluminum alloy, sealed bearing × 4, 148 × 12mm thru axle, 28 holes, straight pull, 6 studs, 78T
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Rear Tire Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
General Components

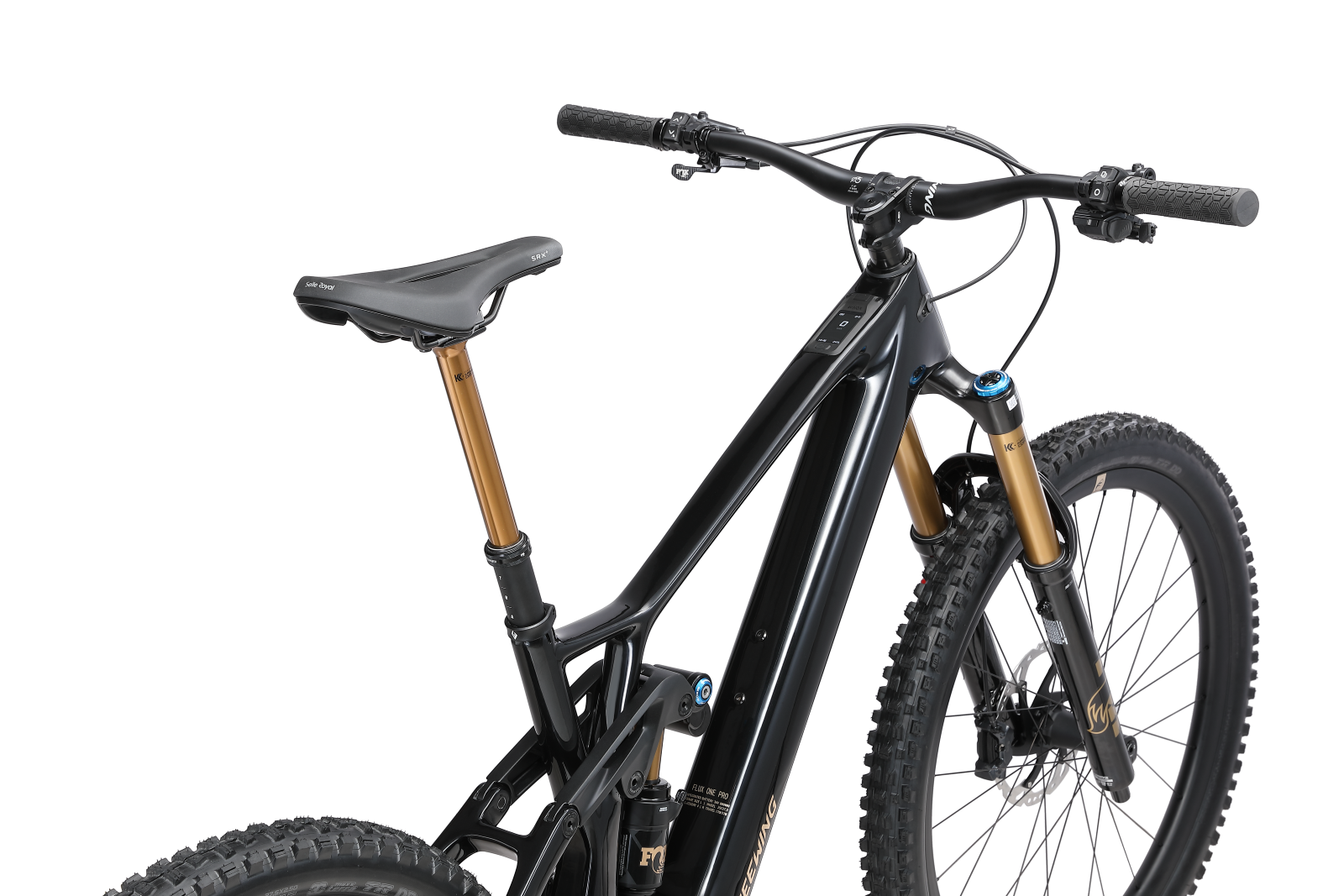

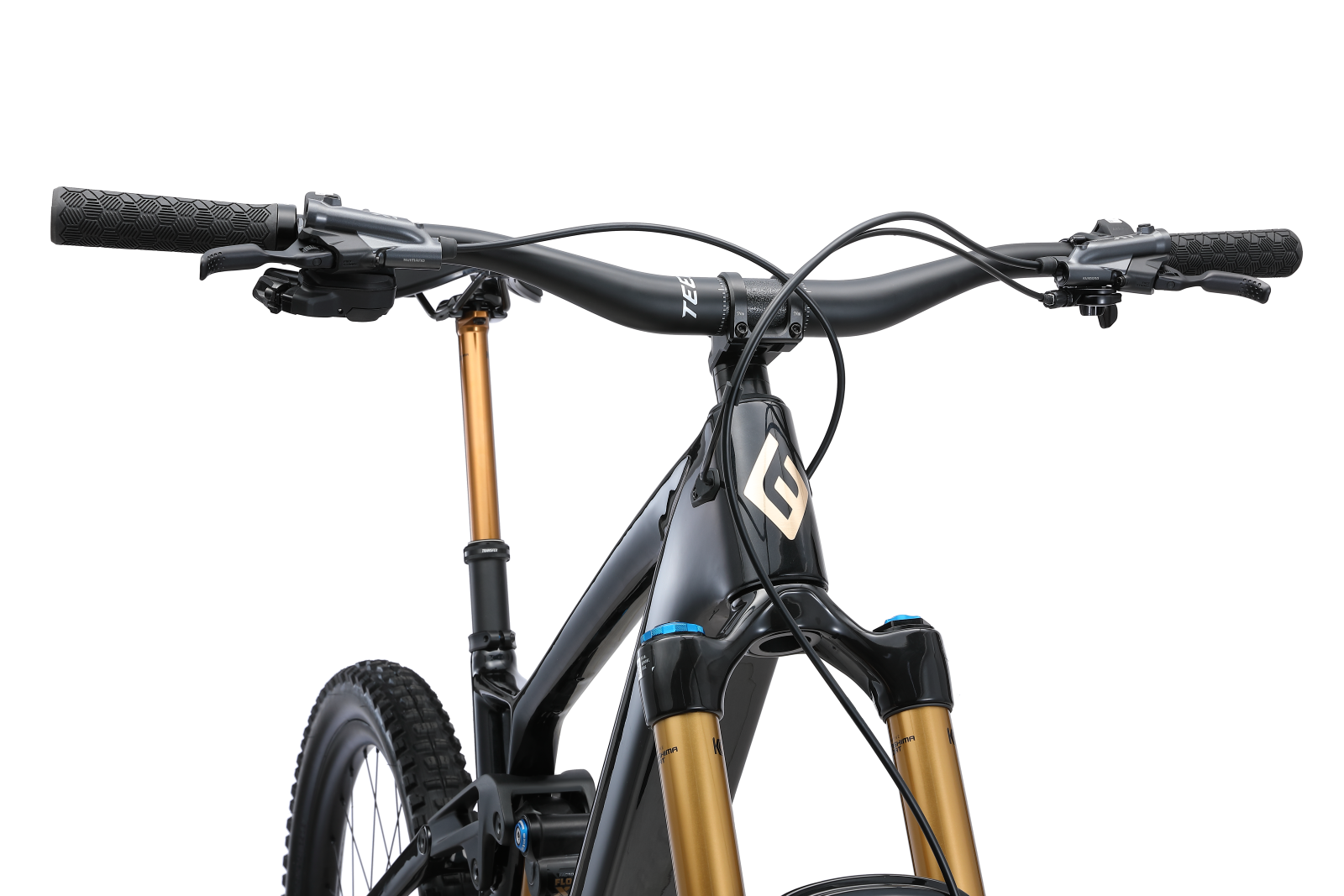

Handlebar Teewing  Enduro Carbon Handlebar 20mm rise, 800mm wide 5-degree upsweep, 8-degree backsweep
Grips VELO Enduro Grips
Stem Teewing Enduro  7075 CNC Length: 40mm Clamping diameter: 35mm
Saddle Selle Royal SRX Plus
Seatpost Fox Transfer Kashima 31,6mm telescopic seat post, remote adjustment M: 150mm L: 180mm XL: 210mm
Accessories
User Manual
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Net Weight (with battery) - 21.5kg (47.4lbs)
(R"29) Size M L XL
A Reach (High)455 / (Low)452 (High)480 / (Low)477 (High)505 / (Low)502
B Stack (High)633.6 / (Low)635.6 (High)642.5 / (Low)644.5 (High)655 / (Low)657
C Seat Tube Length 420 445 470
D Head Tube Length 105 115 130
E Seat Tube Angle (High)78° / (Low)77.7° (High)78° / (Low)77.7° (High)78° / (Low)77.7°
F Actual Seat Tube Angle (High)74° / (Low)73.7° (High)74° / (Low)73.7° (High)74° / (Low)73.7°
G Head Tube Angle (High)63.5° / (Low)63.2° (High)63.5° / (Low)63.2° (High)63.5° / (Low)63.2°
H Chain Stay Length (High)450 / (Low)452 (High)450 / (Low)452 (High)450 / (Low)452
I Fork Length 596 596 596
J Fork Rake / Offset 44 44 44
K Front Center 808 837.4 869
L Top Tube Length (Horizontal) 589.7 616.5 644.3
M BB Drop (High)25 / (Low)29 (High)25 / (Low)29 (High)25 / (Low)29
N BB Height (High)345 / (Low)340 (High)345 / (Low)340 (High)345 / (Low)340
O Wheelbase 1242 1281.4 1317.6
(R"27.5) Size M L XL
A Reach (High)458 / (Low)455 (High)483 / (Low)480 (High)508 / (Low)505
B Stack (High)631.1 / (Low)633.6 (High)640 / (Low)642.5 (High)652.5 / (Low)655
C Seat Tube Length 420 445 470
D Head Tube Length 105 115 130
E Seat Tube Angle (High)78.3° / (Low)78° (High)78.3° / (Low)78° (High)78.3° / (Low)78°
F Actual Seat Tube Angle (High)74.3° / (Low)74° (High)74.3° / (Low)74° (High)74.3° / (Low)74°
G Head Tube Angle (High)63.8° / (Low)63.5° (High)63.8° / (Low)63.5° (High)63.8° / (Low)63.5°
H Chain Stay Length (High)434 / (Low)436 (High)434 / (Low)436 (High)434 / (Low)436
I Fork Length 596 596 596
J Fork Rake / Offset 44 44 44
K Front Center 808 837.4 869
L Top Tube Length (Horizontal) 589.7 616.5 644.3
M BB Drop (High)6 / (Low)10 (High)6 / (Low)10 (High)6 / (Low)10
N BB Height (High)350 / (Low)345 (High)350 / (Low)345 (High)350 / (Low)345
O Wheelbase 1232 1271.4 1307.6
