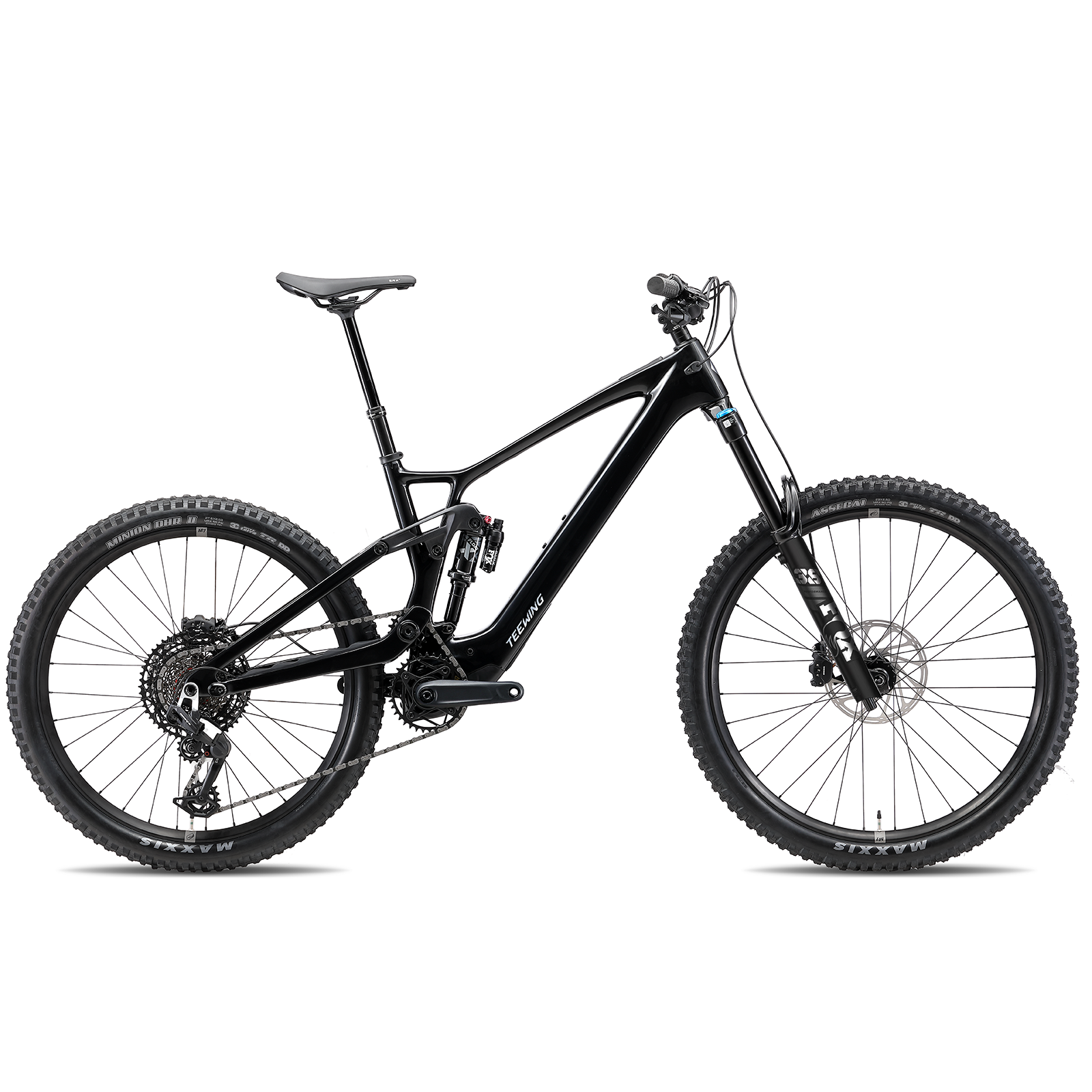

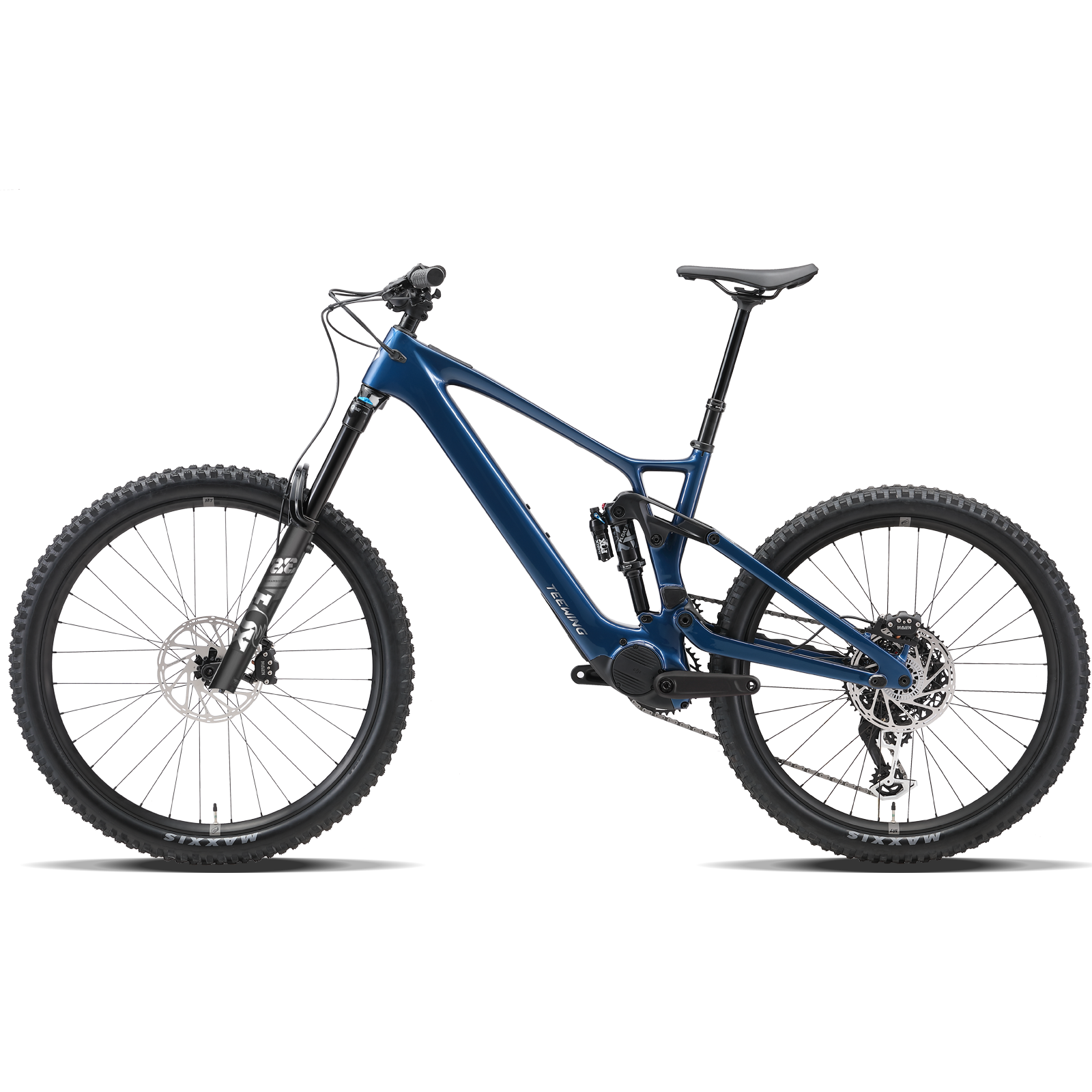

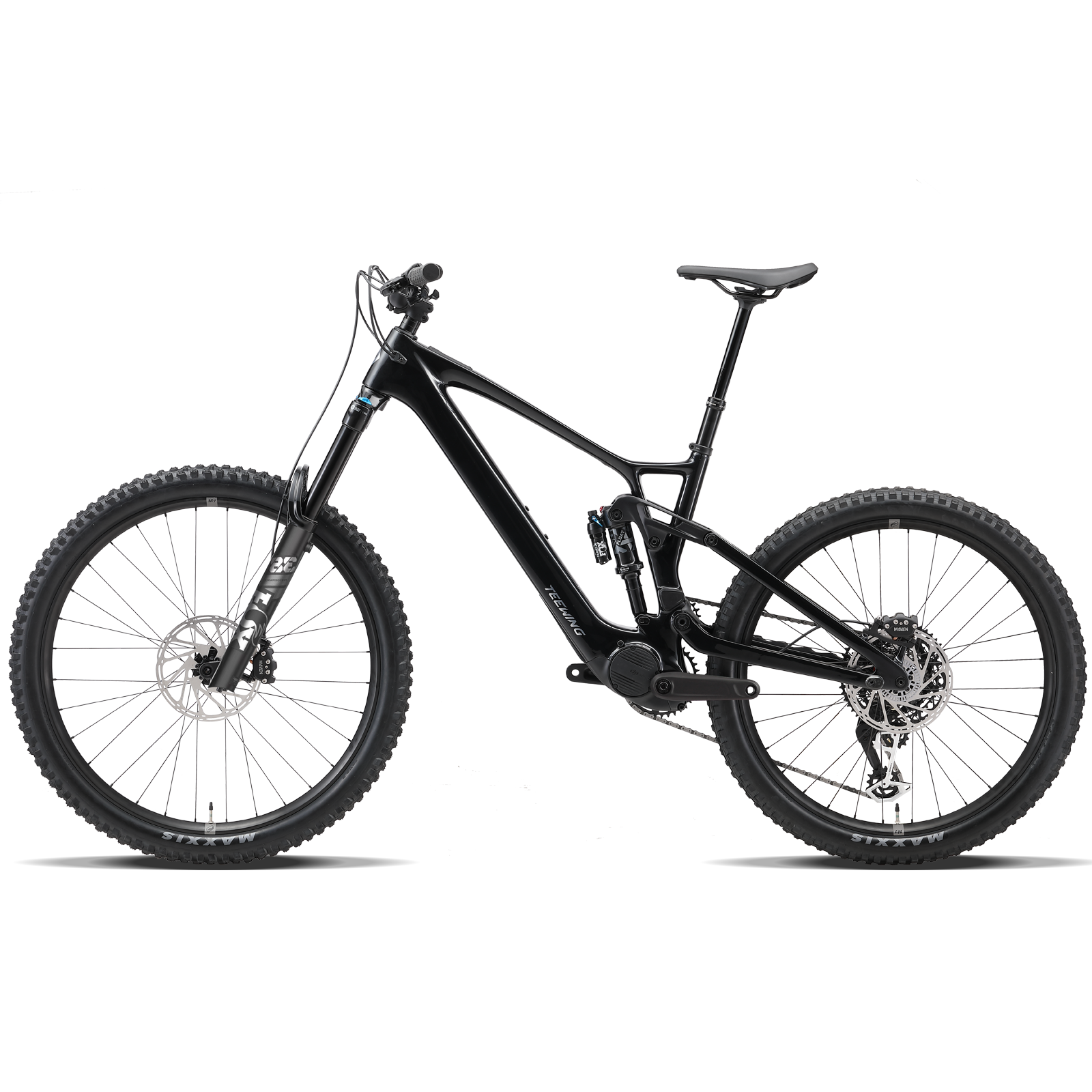

Flux One A

Flux One A

$9,295.00 CAD
$9,295.00 CAD
Sale Coming Soon
Frame Size
The all‑new Teewing Flux One Enduro Series marks a bold evolution in high‑performance eMTB design. Built around a full carbon frame and driven by the advanced DJI Avinox motor system, the Flux One is engineered to thrive in the most demanding enduro terrain with speed, precision, and confidence. A Fox Float Performance 38/X suspension package anchors the bike with a composed, race‑ready feel, delivering 180 mm of front travel and 170/178  mm of rear travel through a high‑pivot suspension platform designed to stay calm under heavy hits and high speeds. Combined with a mullet wheel setup and long‑travel geometry tuned for aggressive riding, the Flux One blends downhill dominance with relentless climbing efficiency. From wide‑open alpine descents to steep, technical, power‑hungry climbs, it delivers a planted, controlled, and unmistakably Teewing ride—raising the bar for what’s possible in an enduro e‑mountain bike.
Contact Us for Information on Availability
View full details

Overview

Features

Specs

Sizing

Why Teewing

DJI Avinox – experience for yourself the system that is getting rave reviews around the world. 105 N.m of torque delivered in a smooth, compact and intuitive ride. Everyone who rides one is blown away!

Carbon Frame – enhanced stiffness but still weighing only 2.37kg, the frame and its geometry provide nimble ride whether climbing or descending. Total bike weight is under 50lbs (22.7kg) with an 800Wh high-capacity battery!

Value – you get a cutting-edge drive system with proven brand-name components and a great design, all for a highly competitive price.

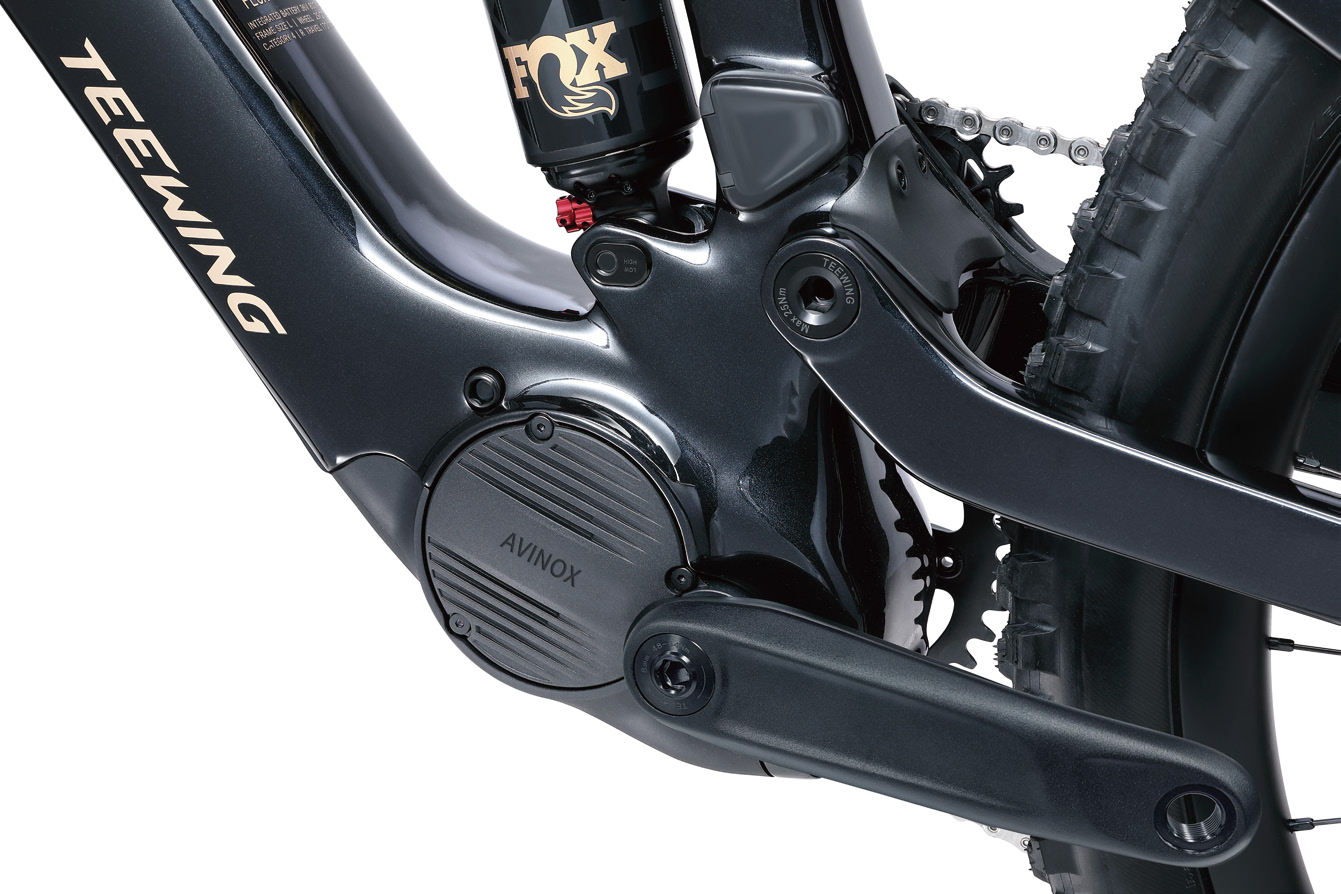

DJI Avinox Drive System

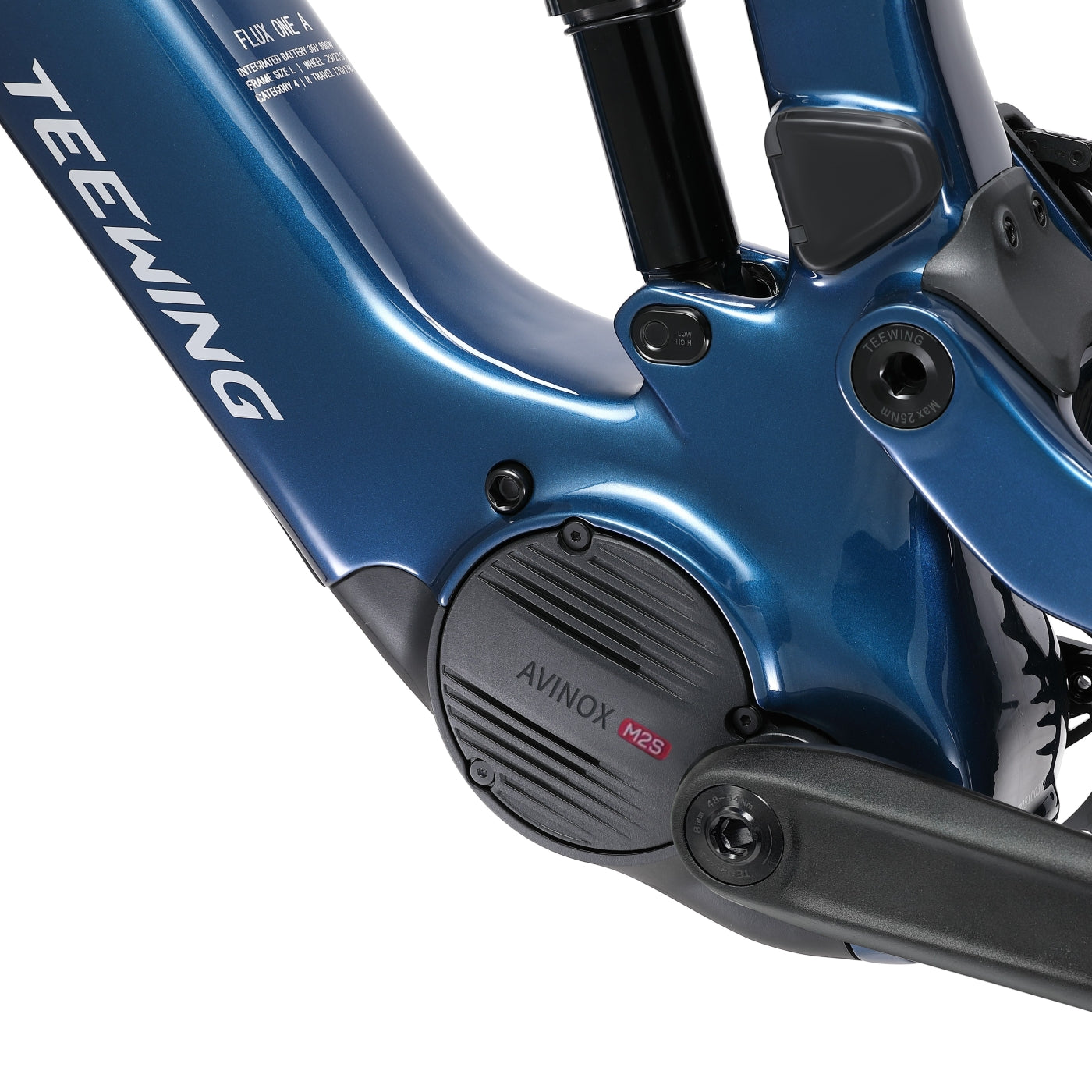

The Teewing Flux One Enduro is powered by the advanced Avinox mid-drive motor, delivering high torque, fast responsiveness,and smooth pedal assistance for demanding enduro terrain. Its intelligent power man- agement provides strong acceleration while maximizing range, and the optimized cooling system ensures consistent performance on long climbs and technical trails. Lightweight yet durable, the Avinox motor enhances control, efficiency, and overall riding confi-dence.

Master Every Descent with High-Pivot Control

The Teewing Flux One elevates enduro

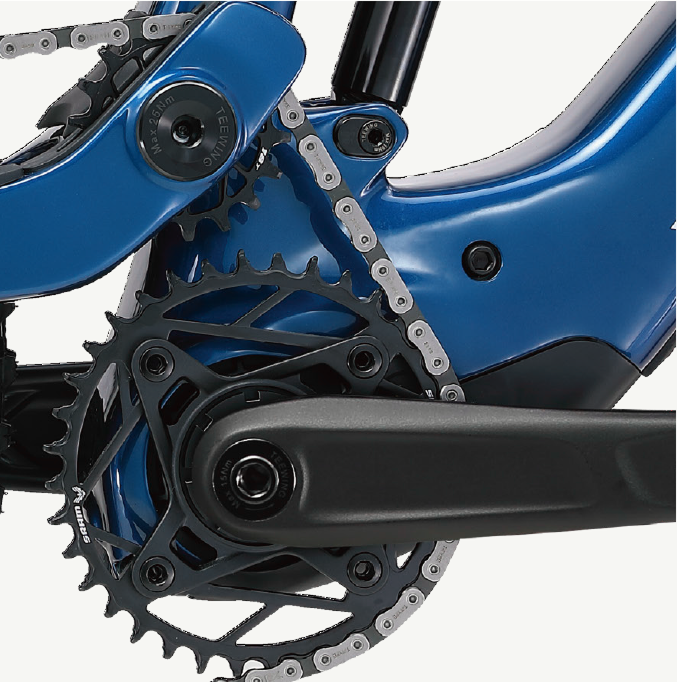

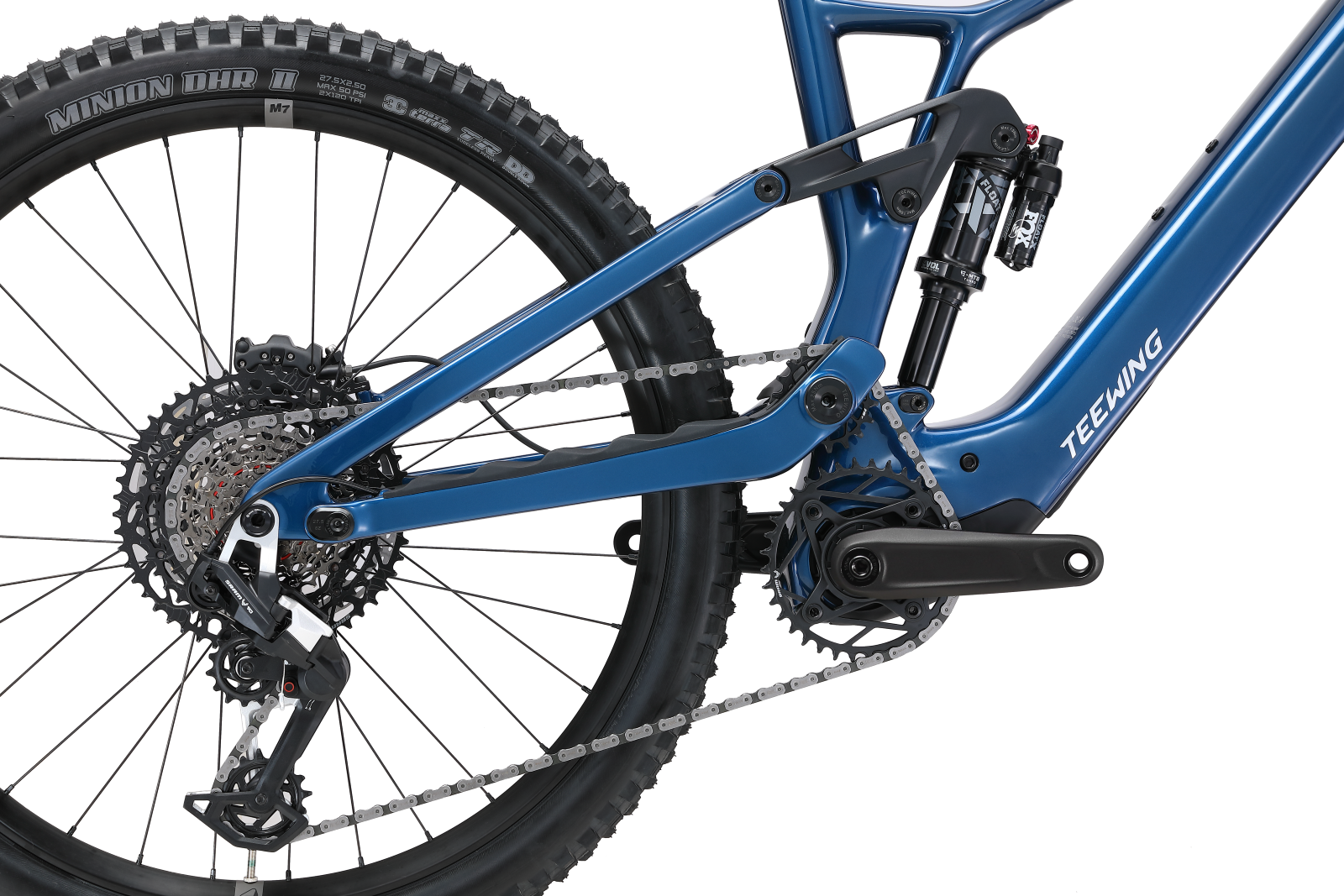

performance with its advanced high-pivot suspension and precision idler pulley system, delivering a smoother, faster, and more controlled ride on the roughest terrain.The high pivot creates a rearward axle path that effortlessly absorbs big hits and maintains stability at speed, while the idler eliminates pedal kickback for efficient, consistent power delivery on climbs and descents. The result is exceptional traction, confident handling, and a uniquely planted feel that lets you push harder and ride more aggresively with total control.

Mullet Speed, Enduro Precision

The Teewing Flux One features a dynamic 29” front / 27.5” rear mullet setup, engineered to deliver the perfect balance of confidence and agility on demanding enduro terrain.The 29-inch front wheel rolls smoothly over obstacles, boosting stability and control at high speeds, while the smaller 27.5-inch rear wheel sharpens handling and provides quicker, more responsive cornering. Combined with the bike’s high-pivot suspension and idler system, this mullet configuration enhances traction, maneuverability, and overall ride flow—giving you the ideal mix of speed, precision, and playful control on every trail.

Adaptive Geometry, Optimized Controly

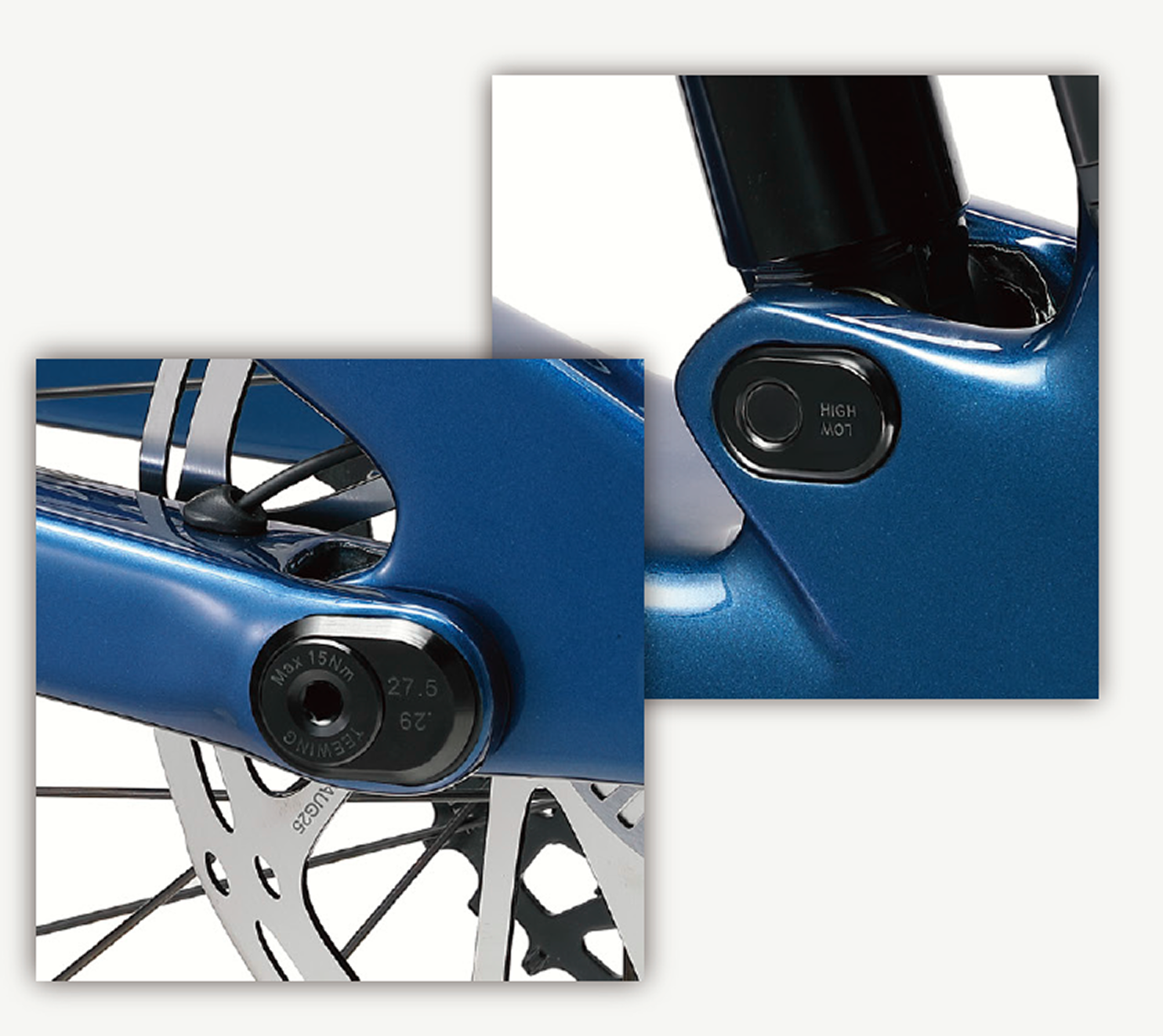

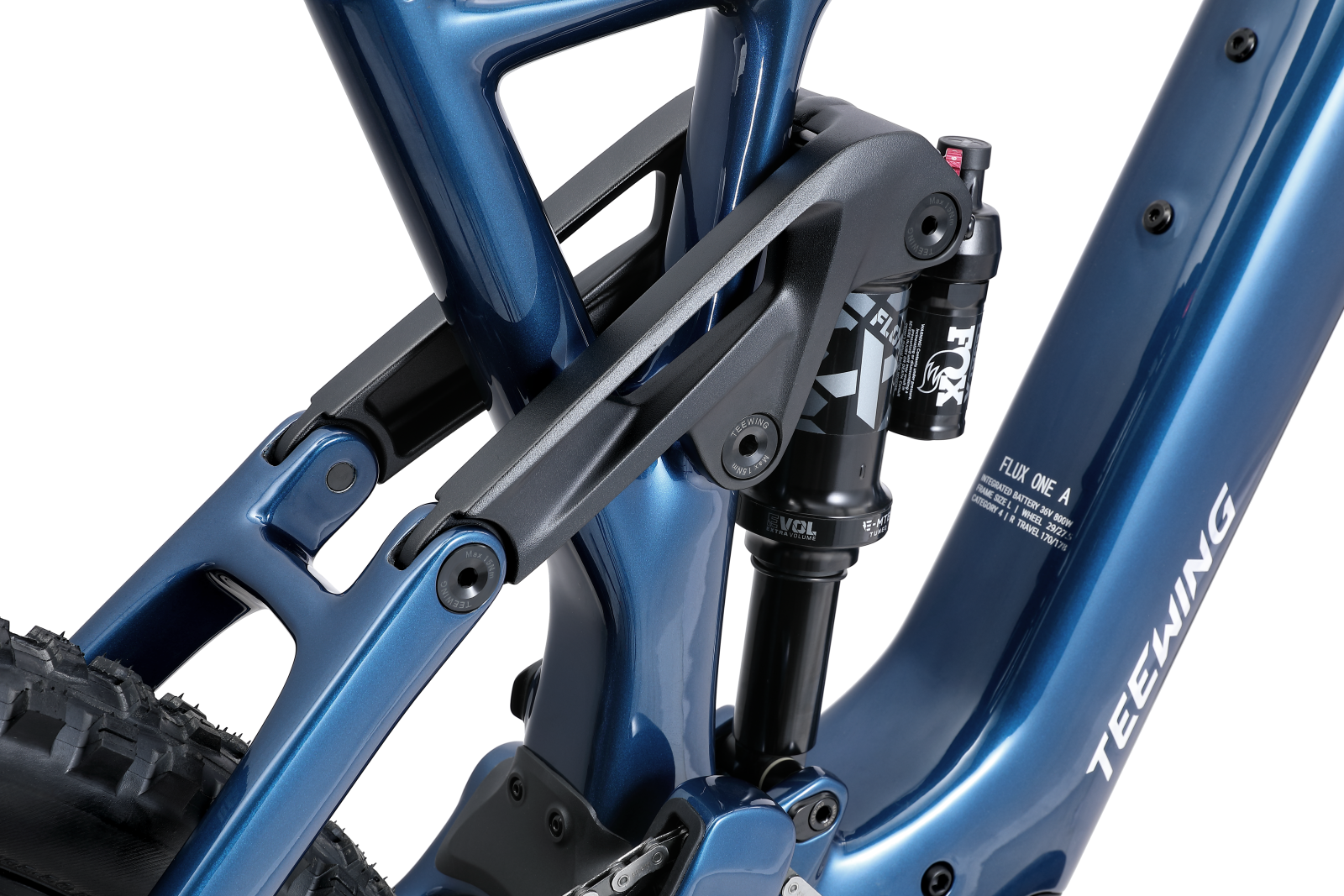

The Teewing Flux One is engineered with a lower-mounted rear shock that keeps the center of gravity planted for superior stability and balance on steep, technical d e s ce n t s . At t h e c h a i n s t ay – s e a t s t ay junction, a reversible geometry chip allows riders to fine-tune the bike’s ride height and
handling characteristics, instantly adjusting the frame’s center of gravity to match different trails or riding styles. Whether you prefer a lower, more aggressive setup for high-speed enduro lines or a slightly higher position for better pedal clearance and versatility, the Flux One gives you the freedom to customize your ride with precision.

Lightweight, High-Capacity Battery

The Teewing Turbo Force XT E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.

Hi-Amp Fast Charger

Utilizing GaN fast charging technology with a max rate of 508W, the 800Wh battery can be charged from 0% to 75% in approximately 1.5 hours, allowing for rapid recharges in a short time span. The fast charger is portable and can be easily carried in a frame bag.

Smart Touchscreen Control

A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.

Avinox App

The Avinox app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal
movement alerts, and other features.

After connecting to the Avinox app, users can customize the parameters shown on the Control Display according to their riding preferences and scenarios. They can also adjust riding parameters directly on the mobile app as needed.

Customizable Riding

The Avinox Drive System features four riding assist modes: Auto, Eco, Trail, and Turbo, and a special Boost mode can be quickly activated for more challenging terrain. In Boost mode, riders can enjoy a max 30 seconds of 120N·m drive torque and an instantaneous max output of 1000 W, allowing for easier handling of complex conditions.

In addition, parameters such as assist level and range, max torque, start assist, and continued assist can be adjusted for each assist mode (with the exception of Boost mode) via the Avinox app, and changes can be synced to the system instantly.

Auto

Designed for broad adaptability and long-range use, the innovative Auto mode utilizes multi-sensor fusion to automatically and continuously adjust assistance based on riding resistance.

Eco

Made to efficiently enhance long-range riding, Eco mode features gradual start-up acceleration and lower assistance, so riders can easily tackle flat terrain while conserving battery energy.

Trail

Aimed at mixed technical trails, Trail mode provides moderate start-up acceleration and stronger assistance, enabling riders to effectively overcome terrain challenges.

Turbo

Designed to assist with steep climbs, Turbo mode's aggressive start-up acceleration combined with maximum assistance, empowers riders to navigate challenging obstacles and terrain.

Boost

Boost mode offers up to 30 seconds of 120N·m drive torque and a max output of 1000 W, ideal for scenarios such as navigating challenging obstacles and complicated uphill climbs.

Model Flux One A (800Wh)
Frameset
Frame Teewing Flux One Carbon Frame - 170/178mm rear travel
Fork Fox Performance Float 38  - A 29in, P-S, 180, Grip, 3Pos, Shiny Blk, Neutral/Gloss Blk Logo, 15QRx110, 1.5 T, 58HT, 44mm Rake
Rear Shock Fox Performance Float X - 2 Pos Lever | LSR | LV EVOL | Metric Trunnion  205*65
E-Bike System
Motor Avinox Drive Unit: 105 N·m
Interface Avinox Screen: 2-inch OLED Control Display. Wireless Controllers: Right and left sides.
Battery Avinox Integrated Battery: 800Wh
Charger Avinox Fast Charger: 12A/508W
Drivetrain
Shifter SRAM 90 Eagle T-Type, Single Click, 12spd

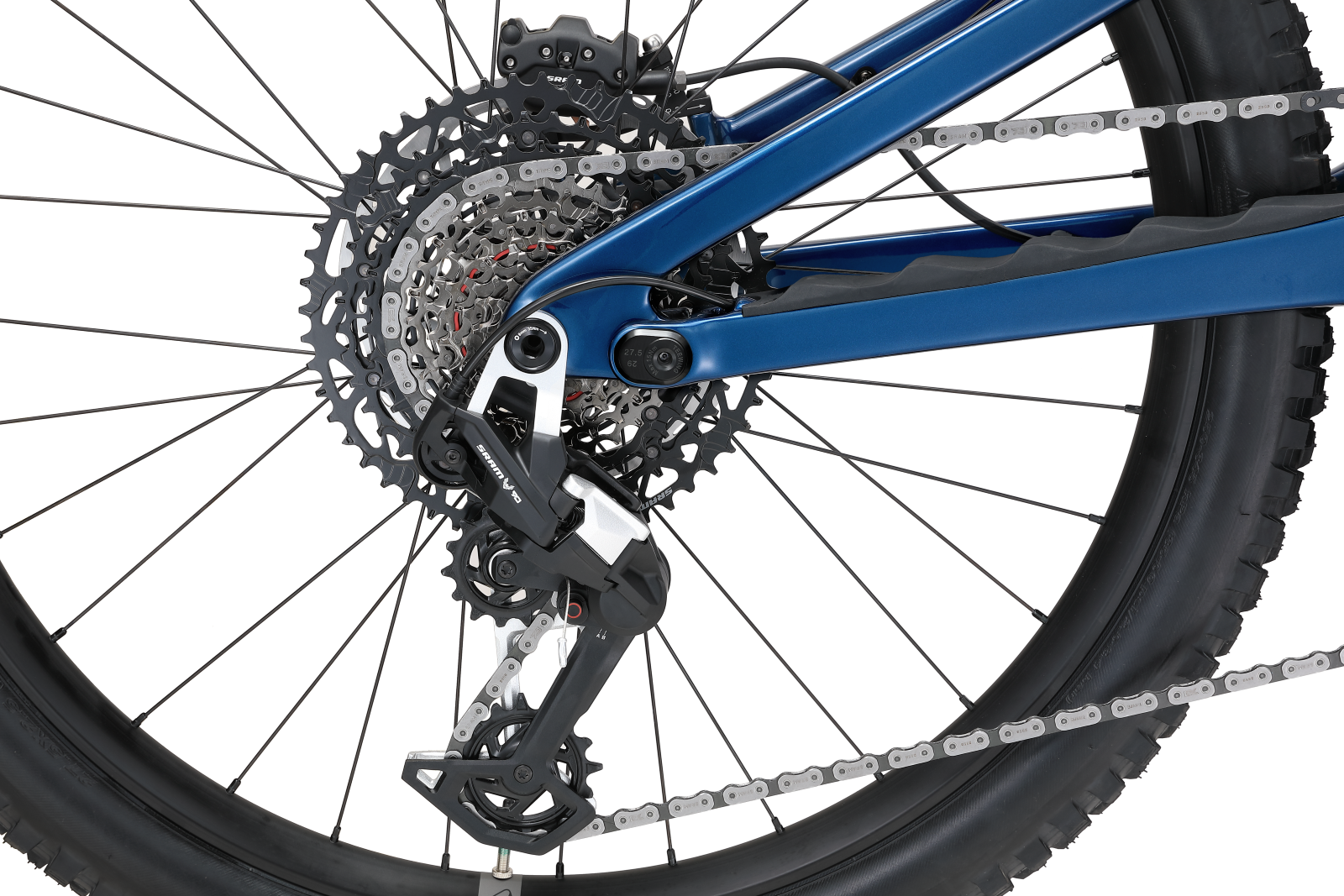

Rear Derailleur SRAM RD EAGLE 90 T-TYPE 12 speed.
Chainring SRAM Eagle Transmission E-MTB Chainring 104 BCD 36T
Cassette SRAM CS XS 1270 T-TYPE 10-52
Chain SRAM CN EAGLE 70 T-TYPE 124LINK
Crankset Teewing SL Crank 155mm
Brakes

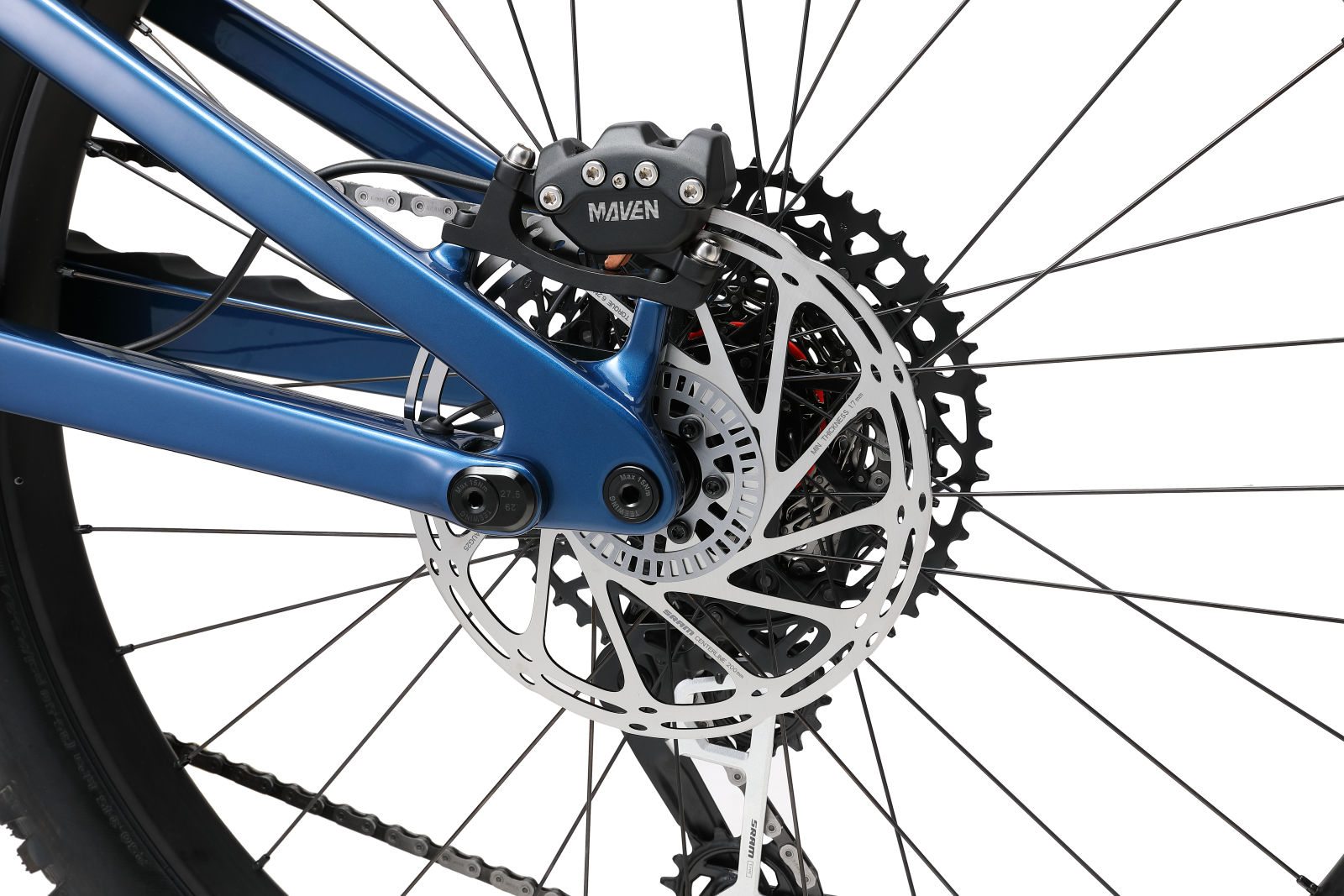

Caliper SRAM Maven Base  4-piston hydraulic disc
Rotor SRAM Centerline - 200mm
Wheels
Rim Formula - M7 Hybrid -Alloy, Front 29'', Rear 27.5”, 30mm internal width, 32H, tubeless ready
Spokes SAPIM E-Light J-bend
Front Hub Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Front Tire Maxxis Assegai 29"x2.5", 3C, MaxxGrip, Double Down
Rear Tire Maxxis Minion DHRII 27.5x2.5, 3C MaxxTerra, DoubleDown
General Components

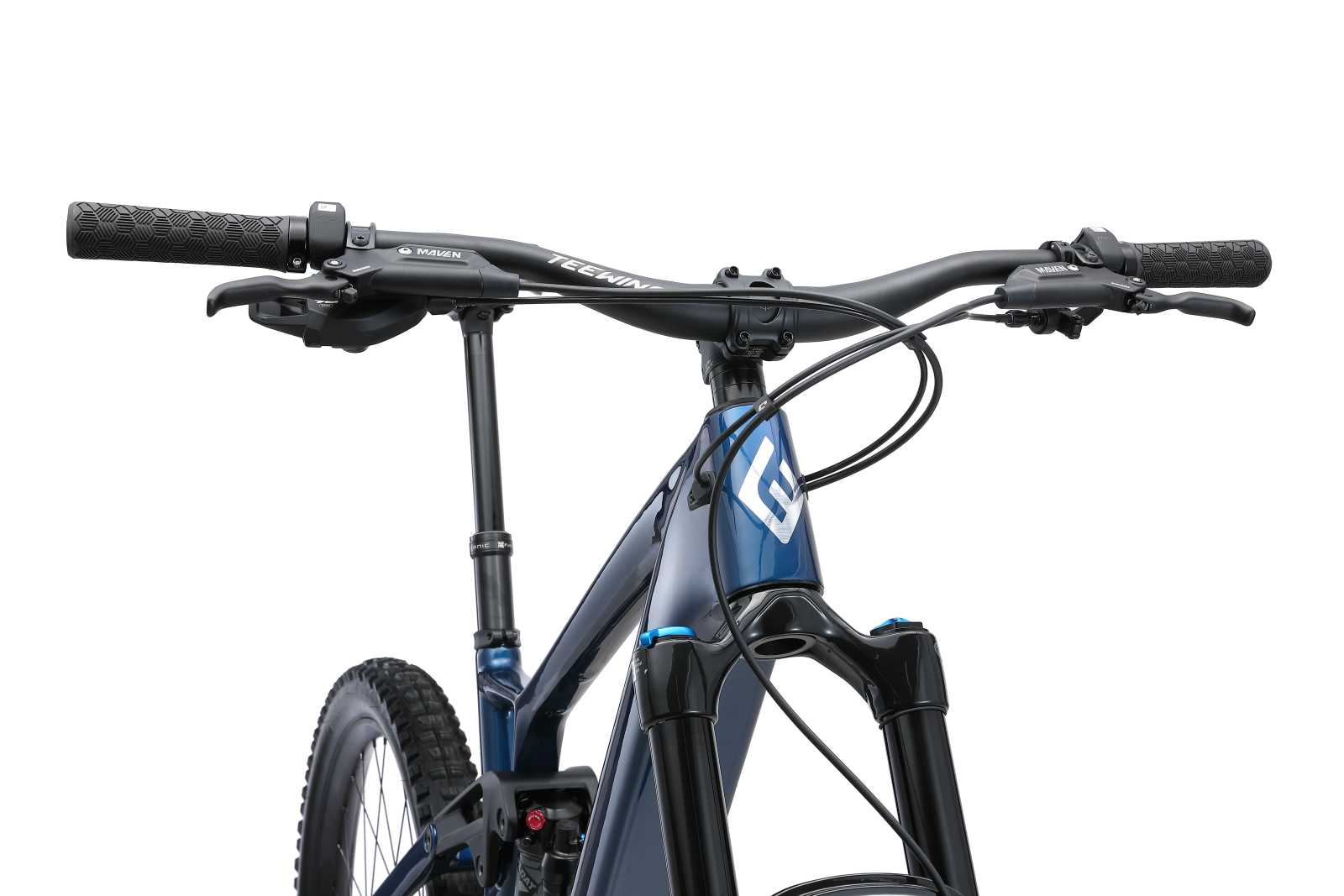

Handlebar Teewing Enduro AL7075-T6  Handlebar 35mm rise, 780mm wide 8-degree upsweep, 8-degree backsweep
Grips VELO Enduro Grips
Stem Teewing Enduro  AL6061-T6 Length: 40mm Clamping diameter: 35mm
Saddle Selle Royal SRX Plus
Seatpost EXA  31.6 - S/M: 150mm L: 170mm XL: 190mm
Accessories
User Manual
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Net Weight (with battery) - 21.5kg (47.4lbs)

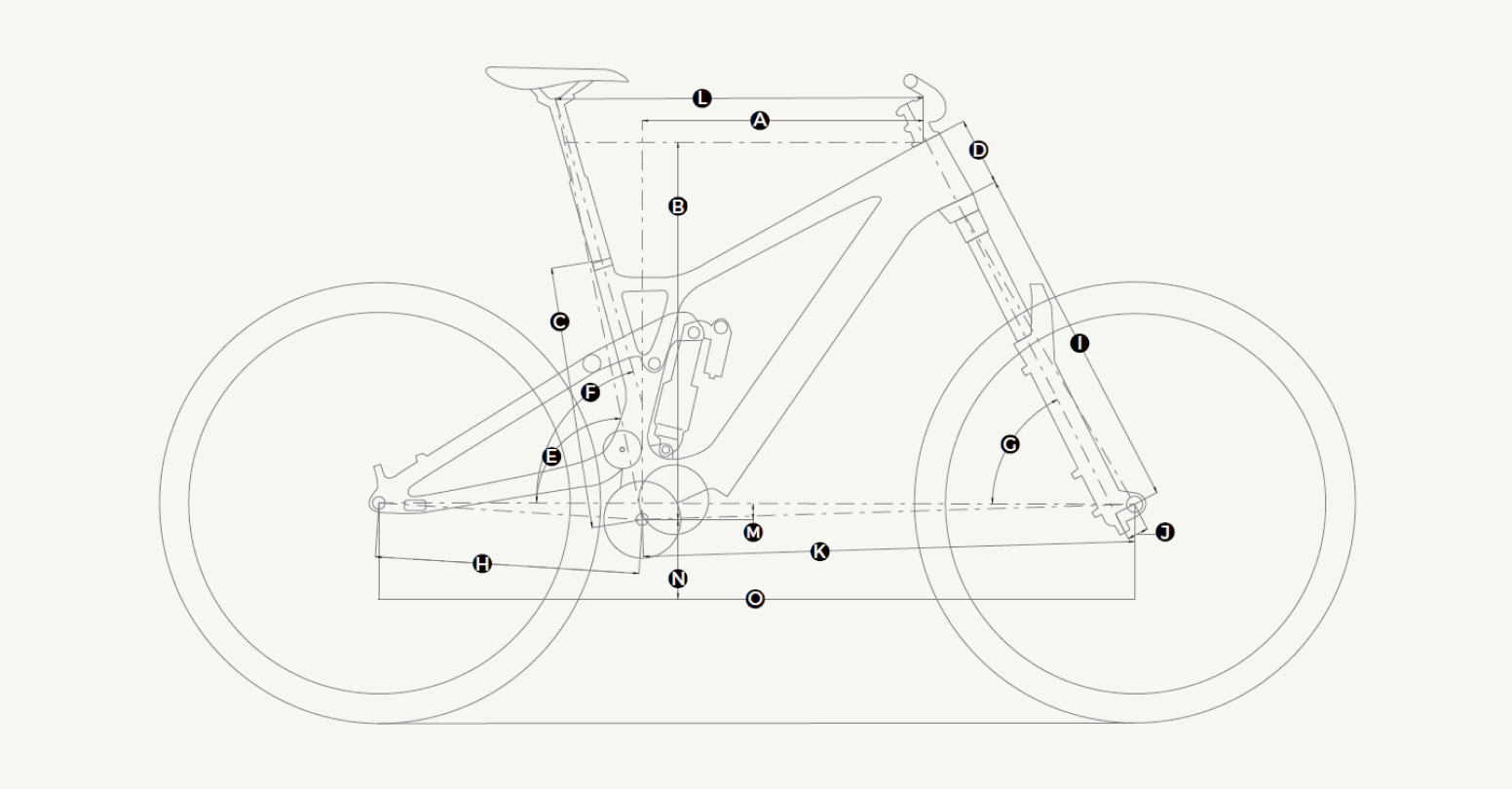

(R"29) Size M L XL
A Reach (High)455 / (Low)452 (High)480 / (Low)477 (High)505 / (Low)502
B Stack (High)633.6 / (Low)635.6 (High)642.5 / (Low)644.5 (High)655 / (Low)657
C Seat Tube Length 420 445 470
D Head Tube Length 105 115 130
E Seat Tube Angle (High)78° / (Low)77.7° (High)78° / (Low)77.7° (High)78° / (Low)77.7°
F Actual Seat Tube Angle (High)74° / (Low)73.7° (High)74° / (Low)73.7° (High)74° / (Low)73.7°
G Head Tube Angle (High)63.5° / (Low)63.2° (High)63.5° / (Low)63.2° (High)63.5° / (Low)63.2°
H Chain Stay Length (High)450 / (Low)452 (High)450 / (Low)452 (High)450 / (Low)452
I Fork Length 596 596 596
J Fork Rake / Offset 44 44 44
K Front Center 808 837.4 869
L Top Tube Length (Horizontal) 589.7 616.5 644.3
M BB Drop (High)25 / (Low)29 (High)25 / (Low)29 (High)25 / (Low)29
N BB Height (High)345 / (Low)340 (High)345 / (Low)340 (High)345 / (Low)340
O Wheelbase 1242 1281.4 1317.6
(R"27.5) Size M L XL
A Reach (High)458 / (Low)455 (High)483 / (Low)480 (High)508 / (Low)505
B Stack (High)631.1 / (Low)633.6 (High)640 / (Low)642.5 (High)652.5 / (Low)655
C Seat Tube Length 420 445 470
D Head Tube Length 105 115 130
E Seat Tube Angle (High)78.3° / (Low)78° (High)78.3° / (Low)78° (High)78.3° / (Low)78°
F Actual Seat Tube Angle (High)74.3° / (Low)74° (High)74.3° / (Low)74° (High)74.3° / (Low)74°
G Head Tube Angle (High)63.8° / (Low)63.5° (High)63.8° / (Low)63.5° (High)63.8° / (Low)63.5°
H Chain Stay Length (High)434 / (Low)436 (High)434 / (Low)436 (High)434 / (Low)436
I Fork Length 596 596 596
J Fork Rake / Offset 44 44 44
K Front Center 808 837.4 869
L Top Tube Length (Horizontal) 589.7 616.5 644.3
M BB Drop (High)6 / (Low)10 (High)6 / (Low)10 (High)6 / (Low)10
N BB Height (High)350 / (Low)345 (High)350 / (Low)345 (High)350 / (Low)345
O Wheelbase 1232 1271.4 1307.6
