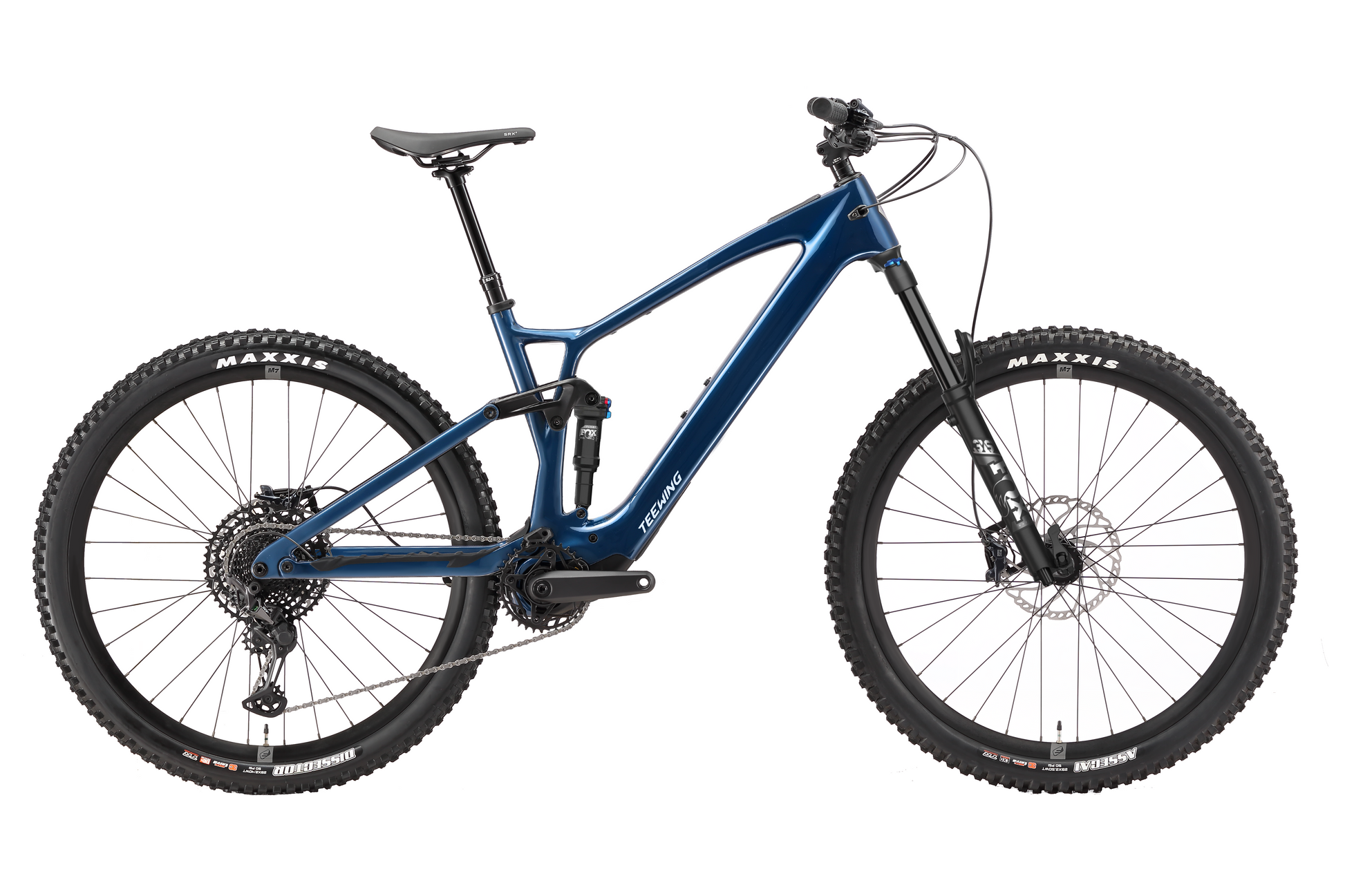

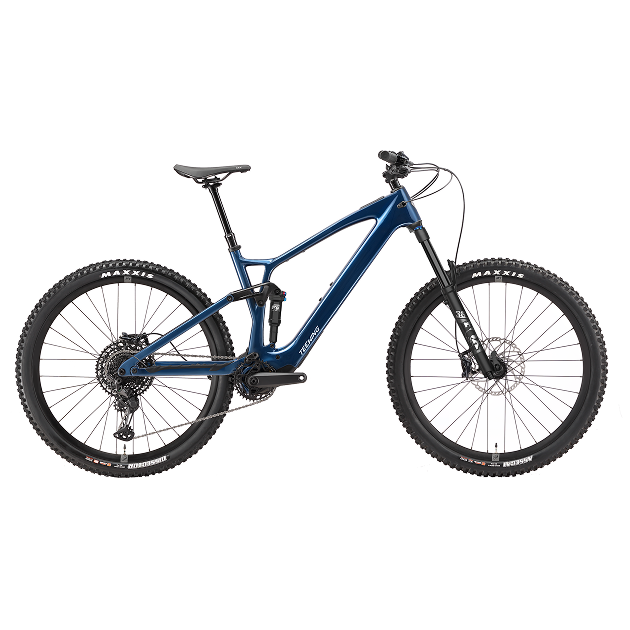

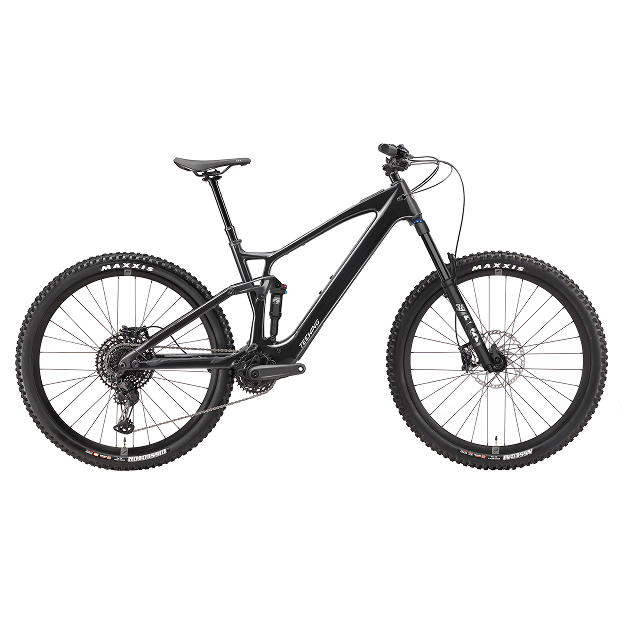

Turbo Force XT 2026

Turbo Force XT 2026

$7,995.00 CAD
$7,995.00 CAD
Sale Coming Soon
Frame Size
The 2026 Teewing Turbo Force XT is built for riders who want a fast, capable e‑mountain bike that thrives everywhere from flowing singletrack to demanding all‑mountain terrain. The new Avinox M2S motor system is quieter, stronger and smoother with enhanced responsiveness that gives riders the confidence to push harder both uphill and down! The full carbon frame keeps the ride light, stiff, and agile, while a Fox 36 Rhythm fork with 160 mm of travel and Fox Float Rhythm rear shock provide confident, balanced suspension for technical climbs and rough descents. A proven Shimano XT 12‑speed drivetrain delivers precise shifting under load, and the integrated 800 Wh battery ensures the range to keep exploring. Responsive, efficient, and trail‑hungry, the Turbo Force XT is your do‑it‑all eMTB for big days and varied terrain.
Contact Us for Pre-Orders
View full details

Overview

Features

Specs

Sizing

Why Teewing

Avinox M2S motor system - delivers next generation power, refined control, and improved efficiency to conquer the most demanding terrain. The M2S drive unit is quieter, stronger and smoother with enhanced responsiveness that gives riders the confidence to push harder both uphill and down.

Carbon Frame – enhanced stiffness but still weighing only 2.37kg, the frame and its geometry provide nimble ride whether climbing or descending. Total bike weight is under 50lbs (22.7kg) with an 800Wh high-capacity battery!

Value – you get a cutting-edge drive system with proven brand-name components and a great design, all for highly competitive price.

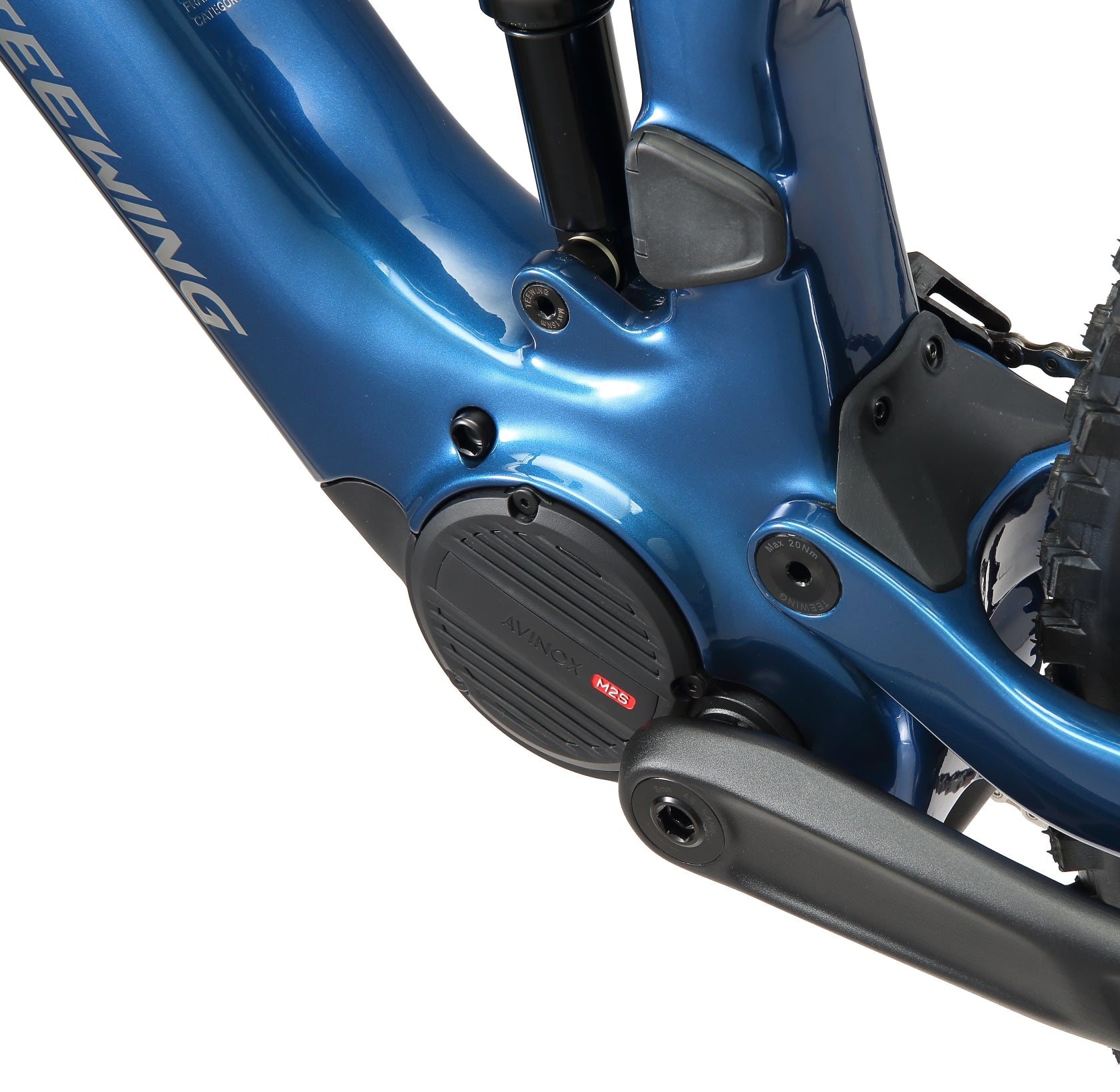

Avinox M2S Motor

The Avinox M2S drive system represents a major leap in power, refinement, and ride feel. Weighing just 2.6 kg, the compact motor delivers a class‑leading 130 Nm of torque, with up to 150 Nm in Boost mode, making steep climbs and technical terrain feel effortless. Reduced pedal drag and minimized motor noise create a quieter, smoother, and more natural riding experience. Multiple assist modes—Auto, Eco, Trail, Turbo, and Boost—allow riders to adapt instantly to changing trail conditions. Paired with an integrated 800 Wh battery producing up to 1300 W peak output, the system offers strong, consistent performance and impressive range. An integrated Avinox top‑tube touch display, weather‑sealed magnetic charge port, and 155 mm crank arms complete a highly refined and confidence‑inspiring drive system.

Lightweight, High-Capacity Battery

The Teewing Turbo Force XT E-MTB is equipped with DJI's 800Wh battery, weighing approximately 3.74 kg. This lightweight, high-capacity battery offers an impressive range of up to 157 km, enabling riders to embark on extended adventures with confidence.

Shimano XT

Shimano XT is the mountain bike groupset trusted by generations of mountain bikers around the world. Whatever you ride, XT is your high-performance workhorse that gives you reliable shifting, superior braking, intuitive maintenance and great industry support.

Optimized Frame Geometry

The Teewing Turbo Force XT e-bike is meticulously engineered with a 445mm chainstay length, a 77-degree seat tube angle, and a 64.5-degree head tube angle paired with a 44mm rake. This geometry ensures agile handling, optimal weight distribution for efficient climbing, and enhanced stability during descents and braking.

Enhanced Frame Stiffness

The Teewing Turbo Force XT carbon frame is crafted with monocoque technology and continuous reinforcements at critical junctions for superior structural integrity and load distribution. Weighing only 2.37kg, it delivers exceptional torsional rigidity—especially in the rear triangle—for high-performance, unmatched handling.

Smart Touchscreen Control

A 2-inch OLED touchscreen with automatic brightness, offering a customizable interface and seamless connection to the Avinox app. It tracks over 40 data points, ensuring clear visibility in any weather with dustproof, water-resistant, and anti-glare capabilities.

Avinox App

The Avinox app connects to the bike via Bluetooth, enabling personalized riding data configuration, abnormal
movement alerts, and other features.

After connecting to the Avinox app, users can customize the parameters shown on the Control Display according to their riding preferences and scenarios. They can also adjust riding parameters directly on the mobile app as needed.

Customizable Riding

The Avinox Drive System features four riding assist modes: Auto, Eco, Trail, and Turbo, and a special Boost mode can be quickly activated for more challenging terrain. In Boost mode, riders can enjoy a max 30 seconds of 120N·m drive torque and an instantaneous max output of 1000 W, allowing for easier handling of complex conditions.

In addition, parameters such as assist level and range, max torque, start assist, and continued assist can be adjusted for each assist mode (with the exception of Boost mode) via the Avinox app, and changes can be synced to the system instantly.

Auto

Designed for broad adaptability and long-range use, the innovative Auto mode utilizes multi-sensor fusion to automatically and continuously adjust assistance based on riding resistance.

Eco

Made to efficiently enhance long-range riding, Eco mode features gradual start-up acceleration and lower assistance, so riders can easily tackle flat terrain while conserving battery energy.

Trail

Aimed at mixed technical trails, Trail mode provides moderate start-up acceleration and stronger assistance, enabling riders to effectively overcome terrain challenges.

Turbo

Designed to assist with steep climbs, Turbo mode's aggressive start-up acceleration combined with maximum assistance, empowers riders to navigate challenging obstacles and terrain.

Boost

Boost mode offers up to 30 seconds of 120N·m drive torque and a max output of 1000 W, ideal for scenarios such as navigating challenging obstacles and complicated uphill climbs.

Model Turbo Force XT (800Wh)
Frameset
Frame Teewing Turbo Force Carbon Frame
Fork Fox 36 Rhythm 160mm - 25.36.A. 29in, Grip Sweep-Adj, Matte Blk, 15QRx110, 1.5 T 58HT, 44mm Rake
Rear Shock Fox Float Rhythm, A, 2pos, Trunnion, Evol LV, 185, 55, 0.2ci Spacer, LCF, LRM, CML, PMS877 Silver/PMS10392 Dark Silver Logo
E-Bike System
Motor Avinox M2S Drive Unit: 130 Nm (159 Nm Boost)
Interface Avinox Screen: 2-inch OLED Control Display. Wireless Controllers: Right and left sides.
Battery Avinox Integrated Battery: 800Wh
Charger Avinox Charger: 4A/168W
Drivetrain
Shifter Shimano XT M8100, 12 speed
Rear Derailleur Shimano XT M8100, long cage
Chainring Prowheel FD04 BCD=104,11/128*36T,BED
Cassette Shimano SLX M7100, 10-51, 12 speed
Chain Shimano SLX CN-M7100, 120LINKS
Crankset Teewing SL Crank 155mm
Brakes
Caliper Shimano 4-piston hydraulic disc, M7100 lever, M7120 caliper
Rotor Shimano RT66, 6-bolt, 203mm
Wheels
Rim Formula - M7 Hybrid - Alloy, 29'', 30mm internal width, 32H, tubeless ready
Spokes SAPIM E-Light J-bend
Front Hub Alloy, 2 sealed cartridge bearings, 15×110mm thru-axle, 32h, 6-bolt
Rear Hub Alloy, 4 sealed cartridge bearings, 148×12mm thru-axle, 32h, 6-bolt, 21T
Front Tire Maxxis Assegai MaxxTerra 29×2.5" WT 3C EXO + E-25 TLR
Rear Tire Maxxis Dissector MaxxTerra 29×2.4" WT 3C EXO + E-25 TLR
General Components
Handlebar Teewing Enduro AL7075-T6  Handlebar 35mm rise, 780mm wide 8-degree upsweep, 8-degree backsweep
Grips VELO Enduro Grips
Stem Teewing Enduro  AL6061-T6 Length: 40mm Clamping diameter: 35mm
Saddle Selle Royal SRX Plus
Seatpost EXA  31.6 - S/M: 150mm L: 170mm XL: 190mm
Accessories
User Manual
Torque Wrench (3~25 N·m, Hex 2/3/4/5/6mm, Torx® 25)
Shock Pump
Net Weight (with battery) - 21.5kg (47.4lbs)

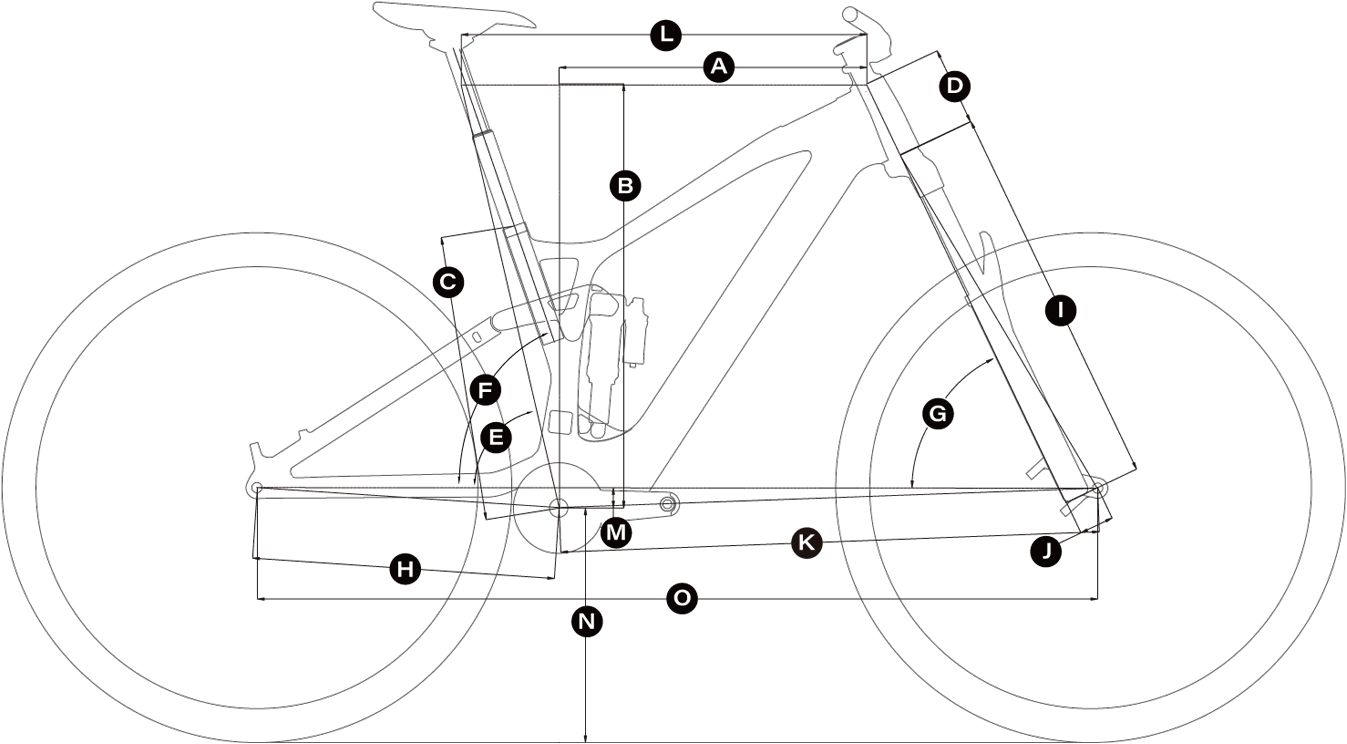

Size S M L XL
A Reach 430 453 476 500
B Stack 620.3 629.3 636 642.8
C Seat-Tube Length 390 420 450 480
D Head Tube Length 105 115 122.5 130
E Seat Tube Angle 77° 77° 77° 77°
F Actual Seat Tube Angle 71° 71° 71° 71°
G Head Tube Angle 64.5° 64.5° 64.5° 64.5°
H Chain Stay Length 445 445 445 445
I Fork Length 570 570 570 570
J Fork Rake / Offset 44 44 44 44
K Front Center 760.9 788.2 814.5 841.6
L Top Tube Length (Horizontal) 573.2 598 623 648.5
M BB Drop 30 30 30 30
N BB Height 345 345 345 345
O Wheelbase 1204.3 1231.6 1257.8 1285
